Extension Cable 5-PIN Female Connector Tail 5-PIN Female Connector Tail

5PF0030BW

766 items left


Collections: Cables & Connectors

Type: Cables


  • Superior Industrial-grade Connectors Push-to-Lock and 1/4-Turn-Release make these both efficient and reliable
  • 5-PIN Female Connector to bare end wires (stripped and tinned)



SPECIFICATIONS

  • Temperature Rating: -20C - +80C
  • Current Rating: 5A Per Pin
  • Voltage Rating: 60V
  • Breakdown Voltage: 1KV / 1 Minute Moist
  • Waterproof Rating: IP67
  • Cable: UL2464 5C*20AWG PVC OD6.0 (Ultra-Violet Protection + Waterproof)
  • Inner Molding: TPU
  • Outer Molding: PVC Black

DOWNLOADS

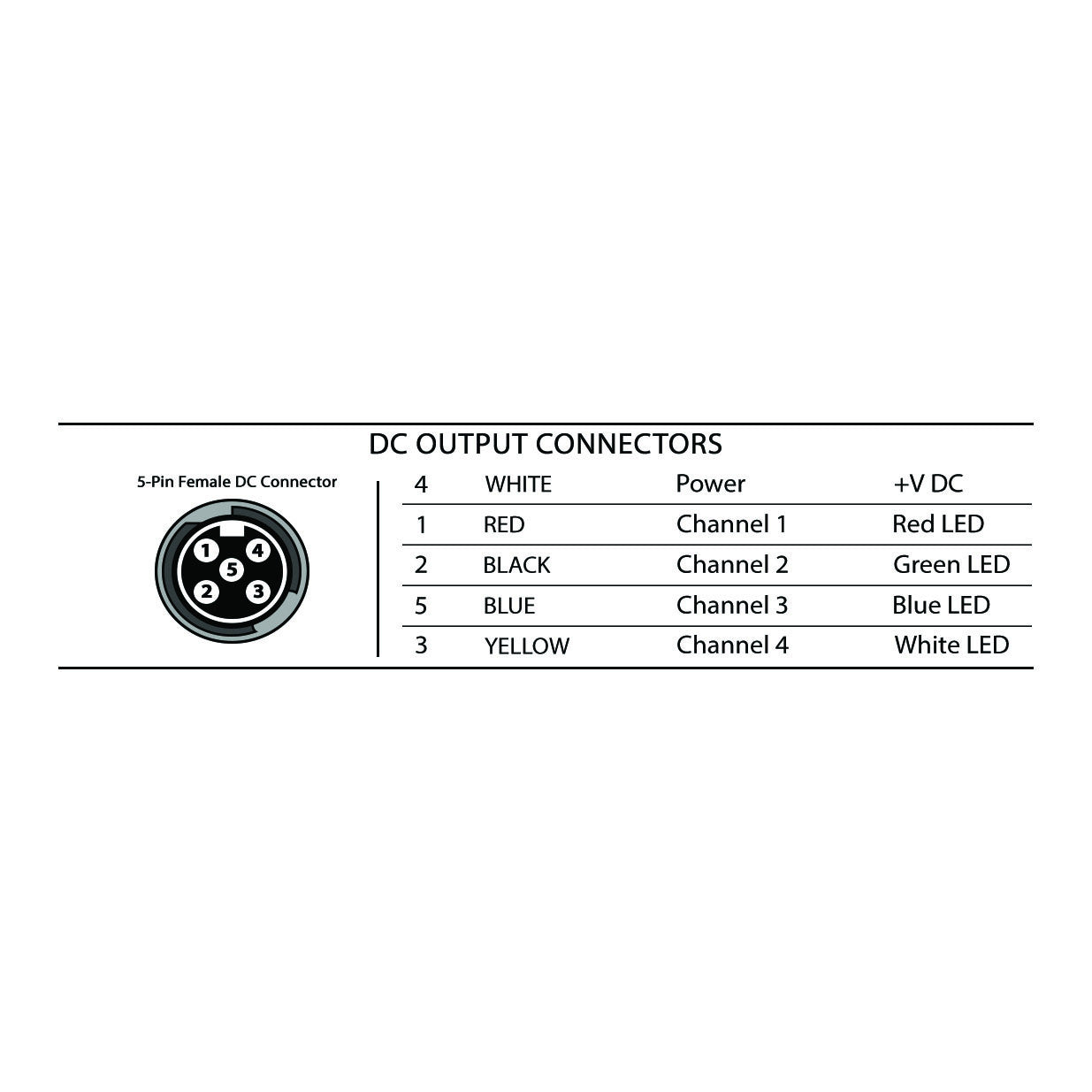

  1. Moss LED Pinout Female Connector

  2. Molded Cable Assembly Drawing

?
