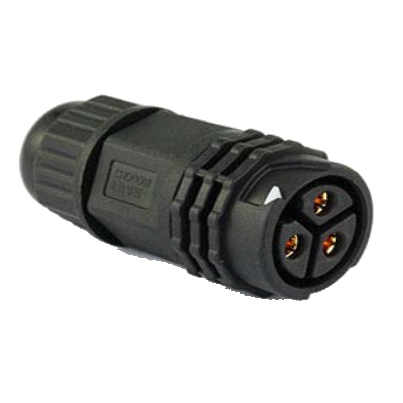

3-PIN Connector - Field Installable Plug

3PMFIP

$16.00 CAD

84 items left

Collections: Cables & Connectors


  • Superior high current DC-rated industry-grade connectors
  • Install connectors on your own cable
  • Field - installable connectors. Can be used with many cables. (preferably 8 AWG)
  • Push-to-Lock and 1/4-Turn-Release make these both efficient and reliable




SPECIFICATIONS

Agency Approvals : cRUus / RoHS Compliant
Amperage : 20A per pin
Current, Rating (MAX) : 50A
Cable Size (mm) : 6.5 - 10.5
Insulation Material : Polyvinylchloride (PVC)
Flammability : VW-1
IP Rating : IP67
Number of Contacts : 3
Temperature, Operating, Maximum : 105 C
Temperature, Operating, Minimum : -45 C
Outer Diameter : 28.8MM
Type : Field Installable Connectors
Voltage, Rating : 300V
Weight : 0.1 lbs.
Wire, AWG : #8
Inner Molding :  TPU
Outer Molding :  PVC



DOWNLOADS

  1.  Male Drawing
  2.  Female Drawing

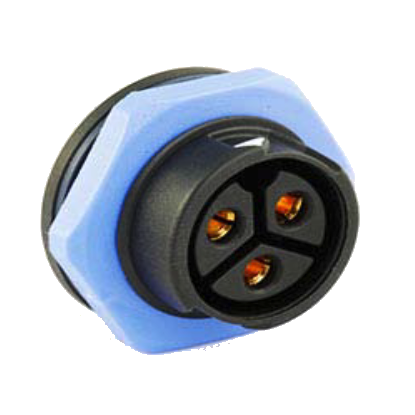

  3.  Panel Mount Drawing
  4.  Field Installable Plug Assembly Instructions
