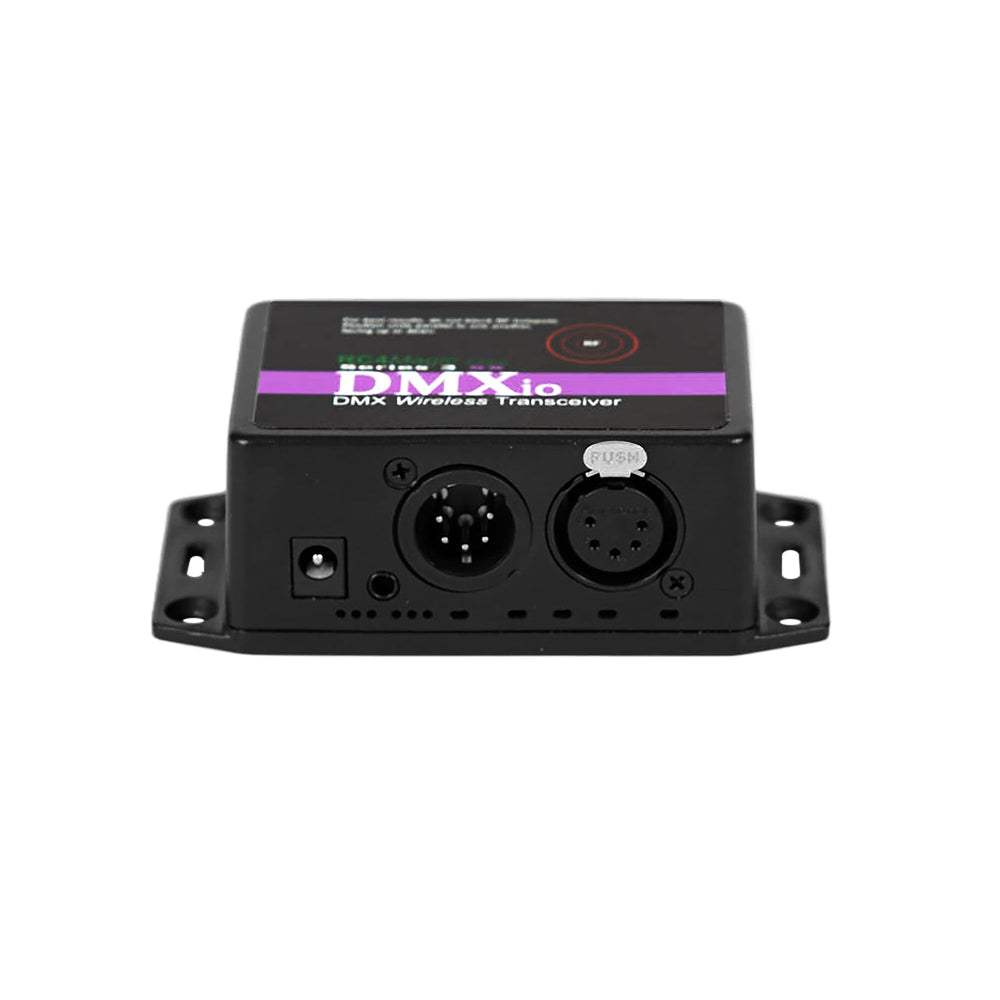

RC4Magic S3 DMXio wireless DMX transceiver front connector panel view with XLR5 male and female connectors, push button, purple stripe branding, black housing with mounting flanges, white background

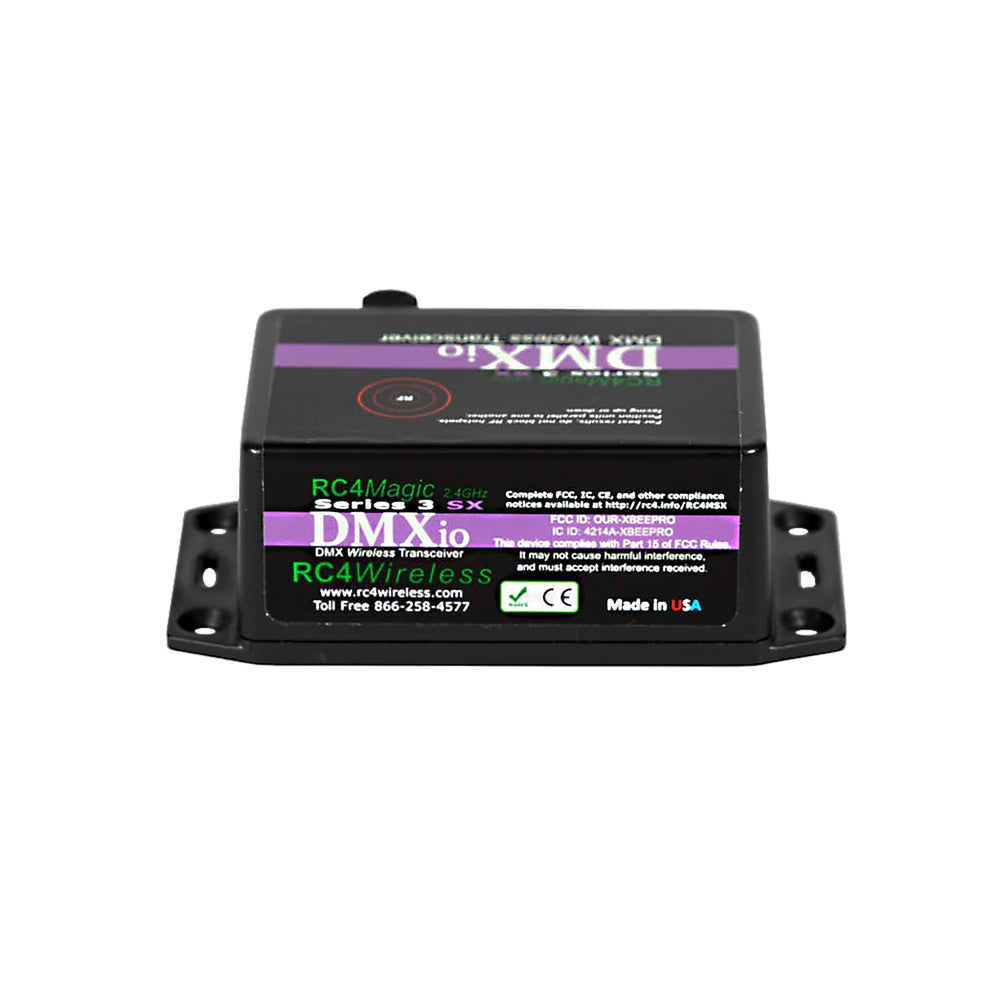

RC4Magic 2.4Ghz S3 DMXio Data Transceiver

SKU RC4-M2400-IO
by RC4
Save 15%
$835.95
$709.95
Title

Total Availability Total product quantity available to order. Product may ship from one warehouse or both warehouses, if required. If product needs to transfer from one warehouse to the other before shipping, a 24-hour delay may occur.

0 in stock

Location Quantity available at each warehouse location. Orders shipping from a single warehouse ship faster; orders requiring stock from both warehouses may be delayed by up to 24 hours for transfer.

Canadian Warehouse Ships from 1355 Fewster Drive, Mississauga, Ontario, L4W 1A2 Canada : Out of stock
USA Warehouse Ships from 6405 Inducon Dr W, Sanborn, NY 14132, United States : Out of stock

THIS PRODUCT IS END OF LIFE - NOT RECOMMENDED FOR NEW SYSTEMS

The RC4Magic S3 DMXio transceiver gives users best in class data security and reliability in the 2.4GHz bandwidth along with the RC4 Two-Year Warranty. All RC4 products come with a private, secure RC4 Secure Private System IDs, which means that no other wireless system can trample your signal.

The DMXio has an internal antenna; the DMXio-HG has an external antenna for those who prefer that option*.

Each DMXio purchase comes with an AC adaptor.

*External antenna out of stock at this time.n.

RC4 Products typically ship within 3-6 Business Days

TECHNICAL SPECIFICATIONS:

  • Dimensions: 3.4” x 2.3” x 1.55” nominal (approx. 86mm x 59mm x 40mm). Mounting flanges extend an additional 0.5″ (13mm), for a bottom footprint of 4.4″ x 2.3″ (112mm x 59mm)
  • Weight: 3.40 oz
  • DMX Input/Output: meets USITT DMX512/1990. XLR5 male and female, and RC4 non-standard miniplug port
  • Power Input: 6VDC – 35VDC, a world-voltage 90 – 250VAC high-efficiency AC adaptor is included. International purchasers will receive a multi prong adapter with connections for Europe, UK, Australia, and North America. North American customers will receive a standard adaptor for use in USA and Canada.

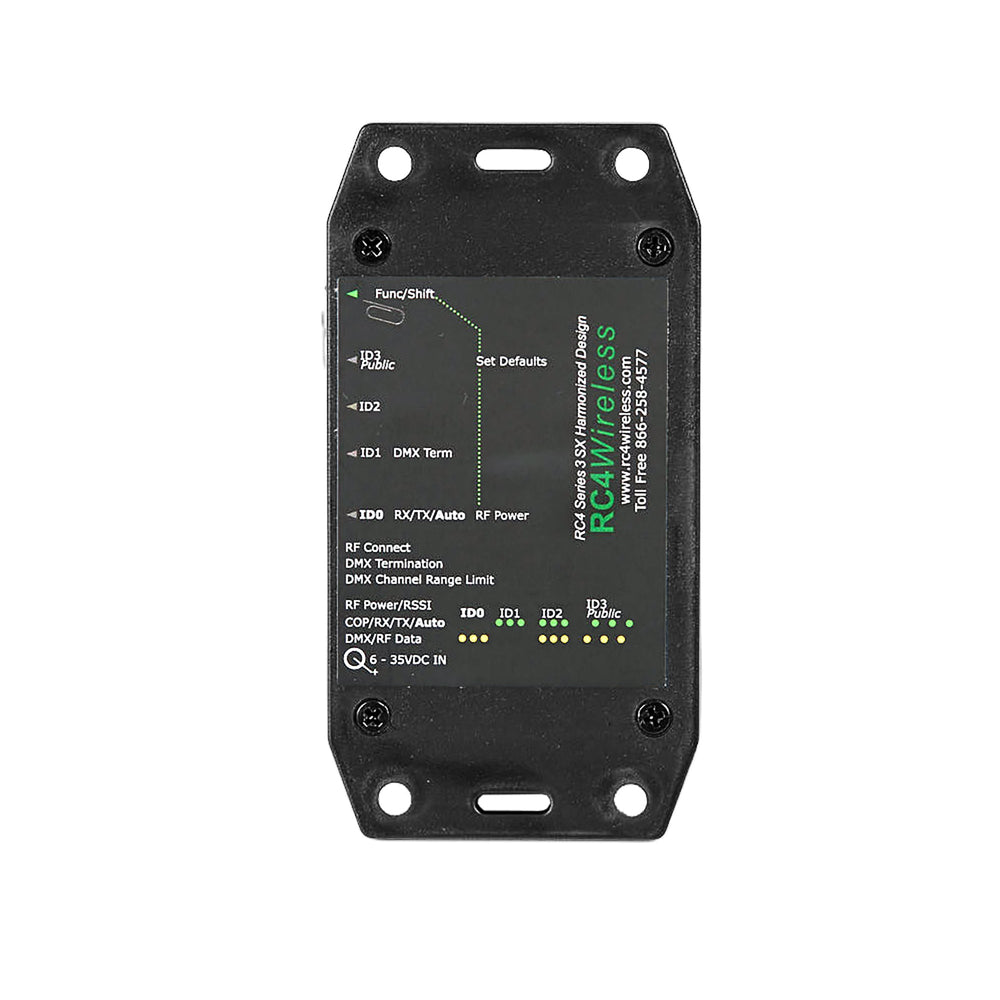

  • Series 3 Versatility: DMX termination enable/disable; selectable top/bottom DMX channel; selectable RF power output levels (RC4Magic 2.4GHz DSSS 100mW max.) Dongle Mode combined with an RC4 USB CodeLoader Cable becomes the hardware interface for RC4 Commander Software
  • 2.4GHz RC4Magic RF Antenna: hidden internal, omnidirectional, nominal 60m range



  • Transmitter Mode

    • Only 1 DMXio transmitter should be operated on each system ID
    • DMX Input: meets USITT DMX512/1990(4us) with 1-second data hold after dropout
    • DMX Output: straight-thru hardware connection from DMX input to output
    • Option DMX channel limiting: set lowest and highest channel using RC4 OneTouch™ (default is full 512-channel universe)

    Receiver Mode

    • Any number of DMXio receivers may be used in a system
    • DMX Output: meets USITT DMX512/1990
    • The DMX specification allows up to 32 devices on a DMX output.  The DMXio data output exceeds this requirement and is capable of driving additional devices.
    • Internally protected against static discharge and excessive line loading

    RC4Magic DMX Protocol Compliance

    • DMX inputs and outputs comply with USITT DMX512/1990(4us)
    • Packets with non-zero start codes are not transmitted; RC4Magic cannot transfer proprietary data or RDM packets
    • DMXio receiver output replicates DMXio transmitter input, providing the same number of DMX channels and the same number of packets per second (pps)
    • Minimum number of DMX channels per packet: 1
    • Maximum number of DMX channels per packet: 512
    • Maximum packet-per-second rate: 44pps with 512 channels, 10000pps with 1 channel
