The RC4 LumenDimM4micro is a 4-channel CRMX wireless DMX dimmer for LEDs, lamps, and motors in small spaces, ideal for costumes and small props. The LumenDimM4micro features genuine LumenRadio CRMX technology for reliable wireless DMX control.

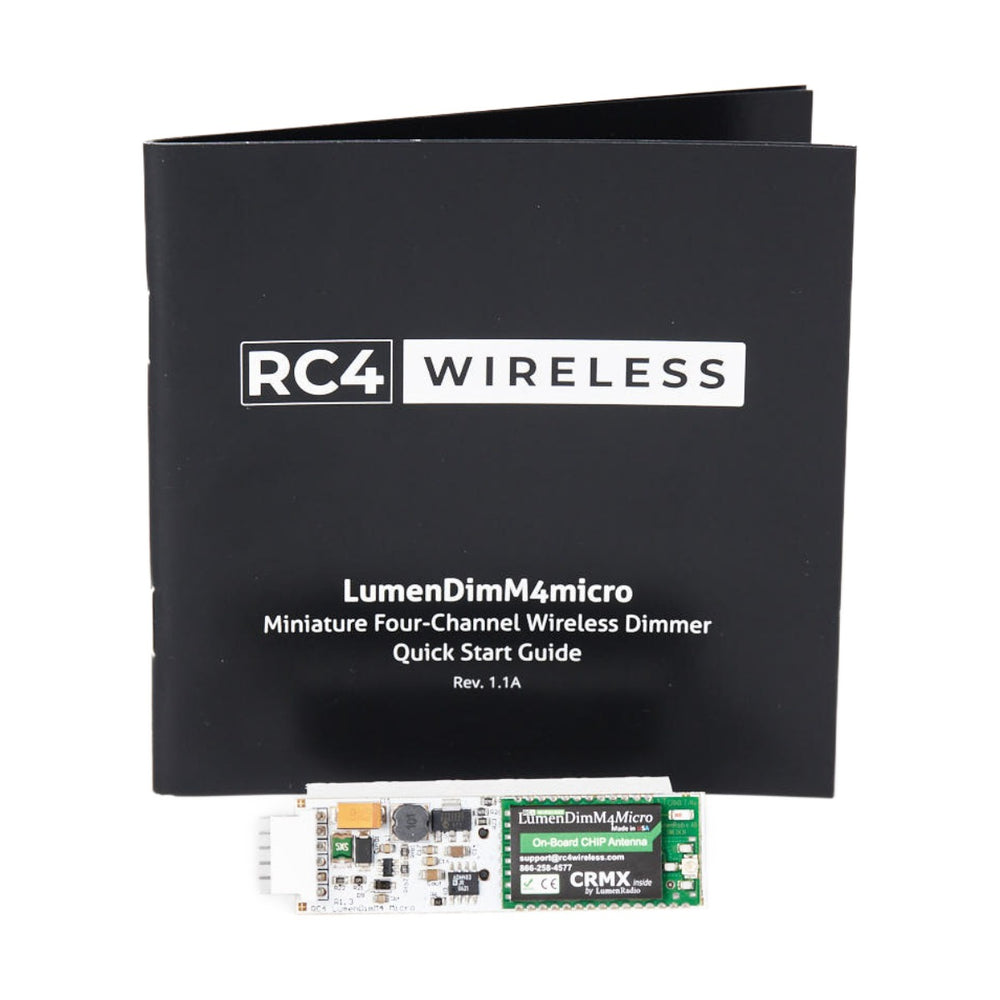

** This version uses a built-in chip-antenna. No external antenna needed. **

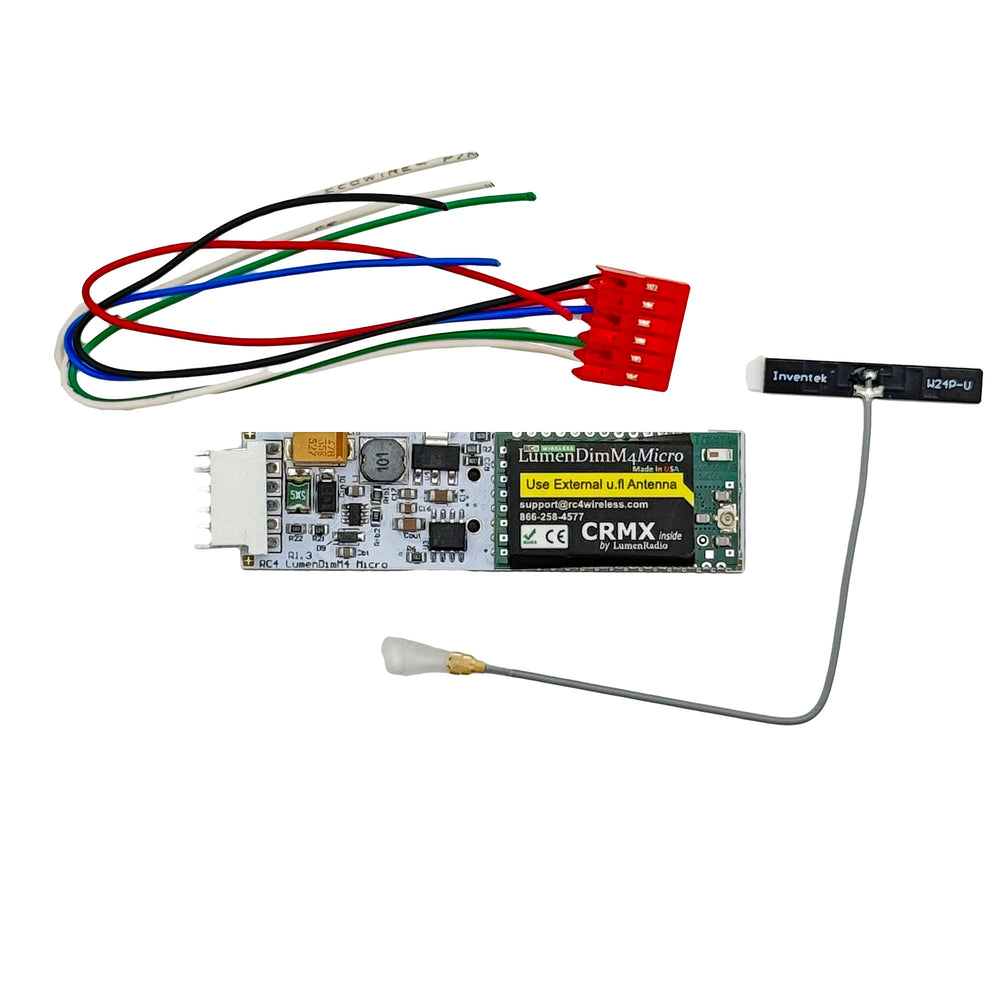

** NEW ** Three connector options are now available: No connector OR Tyco/Amp MTA-100 6-pin (each micro purchase includes a 6-pin connector), OR mini screw terminal* (please allow for extra delivery time for assembly of terminal version)
TECHNICAL SPECIFICATIONS
-
Dimensions: 2.91 x .779 x .433 inches (75mm x 20mm x 10mm), unenclosed circuit board assembly
-
Weight: 0.40 oz
-

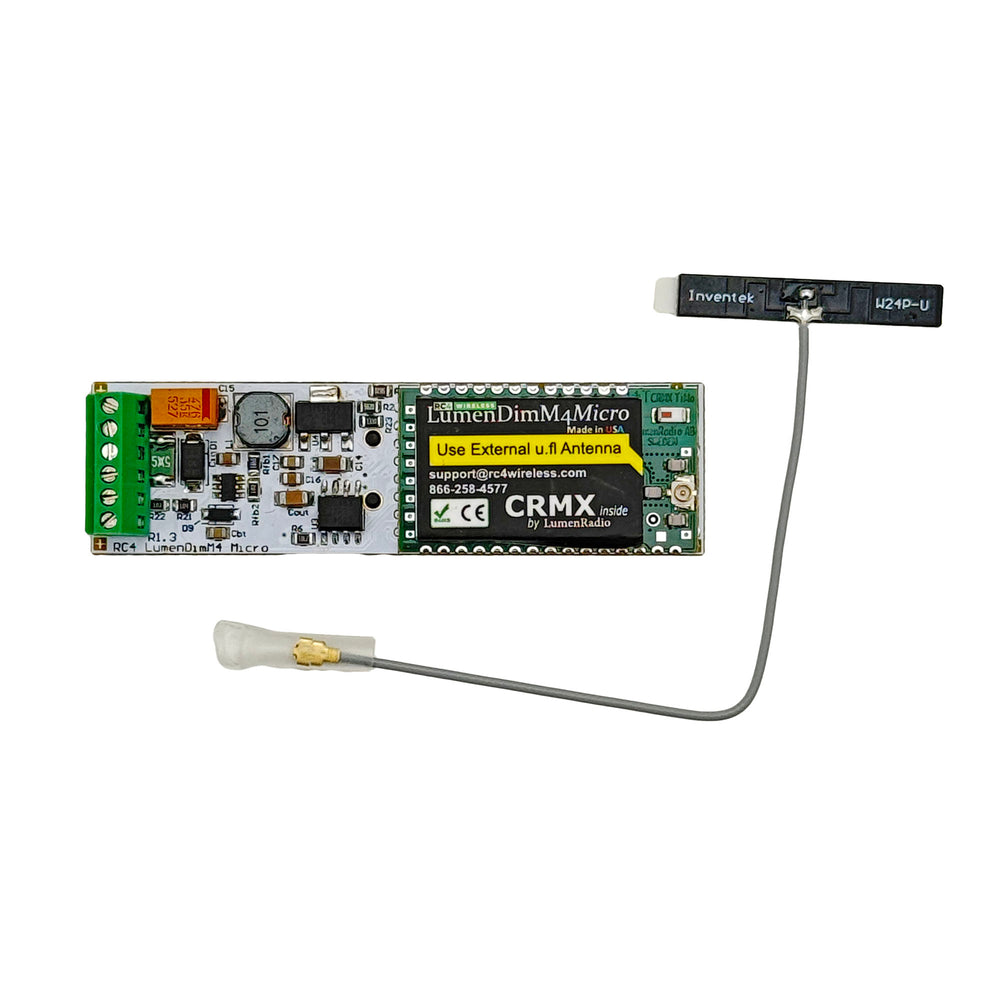

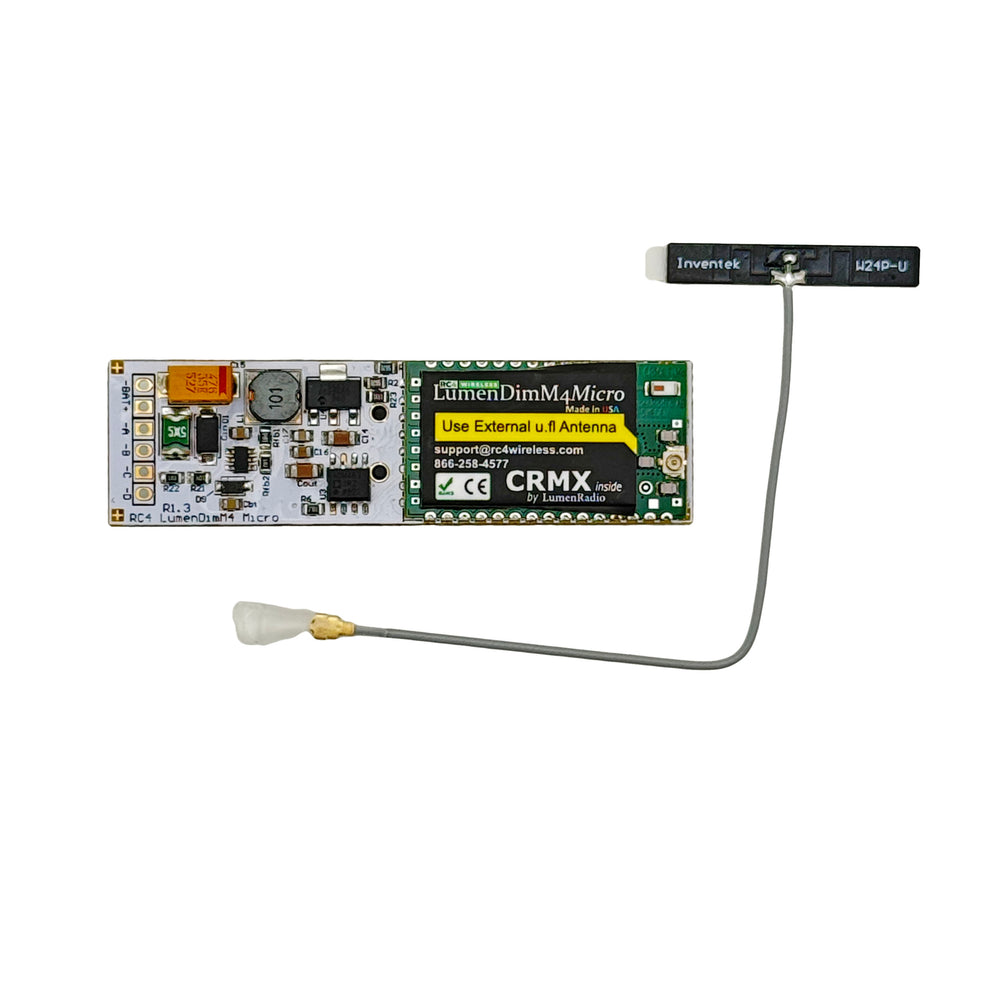

Connection Options: A) Tyco/Amp MTA-100 6-pin, B) mini screw terminal*, C) No connector*
-
Power Input: 5VDC - 35VDC, 0.5W idle
-
Dimmer Outputs: 4 low-voltage DC dimmers, 19-bit resolution PWM
-
Output Power per Dimmer: 6A non-continuous, 3A continuous
-
Multiple PWM Frequencies: 77Hz, 615Hz, 5kHz, 20kHz
-
DMX Input/Output: RC4 3.5mm mini, RDM E1.20 and E1.37 supported
-
Wireless DMX Protocol: LumenRadio CRMX (TiMo)
-
RF Antenna: Built-in internal chip antenna
