Non-Dim Fanless & Metal Housed Power Supplies

$71.00

Collections: Power Supplies

Type: Power Supplies

Category: 12V 24V power supply

NDCV Family of Power Supplies. NDCV stands for Non-Dimmable Constant Voltage. Our new fully listed cULus LED drivers.

Extremely reliable and robust LED power supply designed for use with all Constant Voltage LED products. Perfect for on-camera and constant-on use with our FlexLED Tape and any 24V DC LED product. Class I safety ensures short-circuit, overload, over-voltage, over-current, and over-temperature protection. Rated for Dry, Damp, and Wet locations. Safe, powerful, and reliable are the cornerstones of our NDCV line of power supplies from MossLED. Amazing 5 year warranty.

Output 96 - 300W
Class 2 and Class P Power

Ships in 1 - 2 Business Days

SPECIFICATIONS - 24VDC PRODUCT

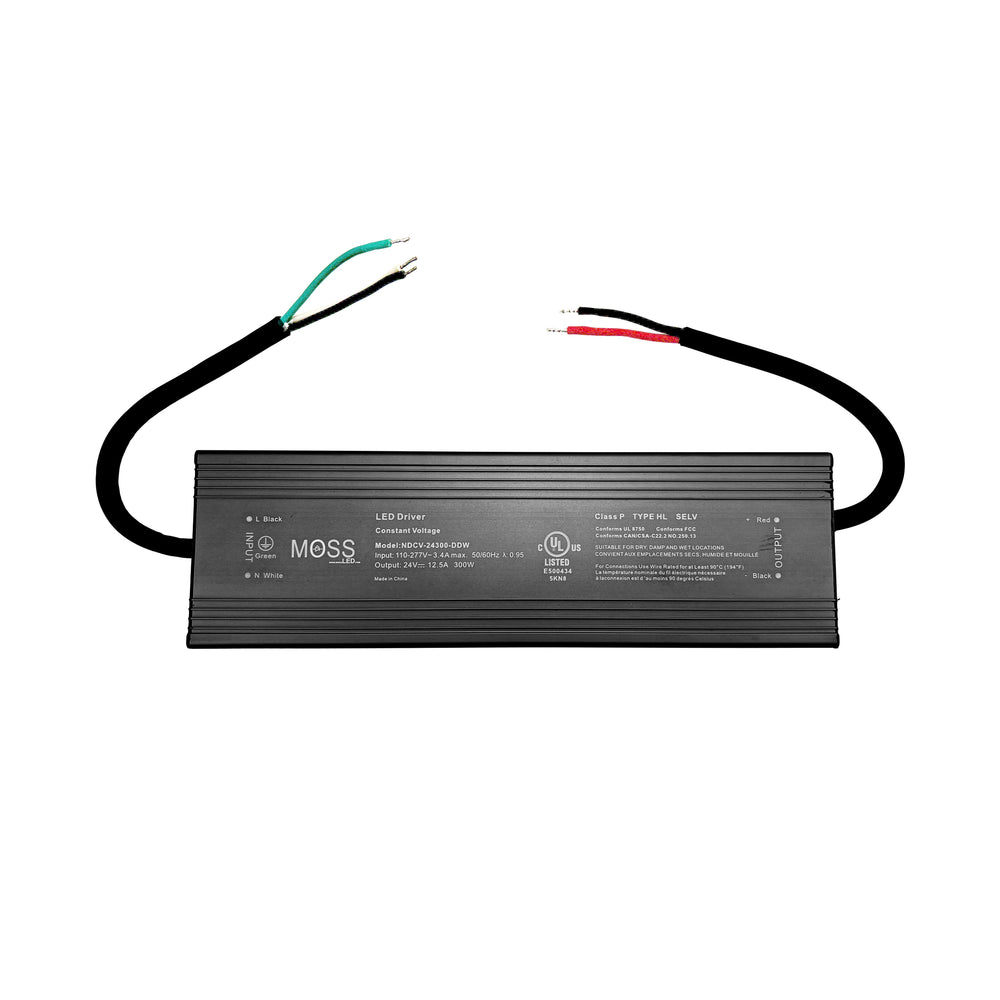

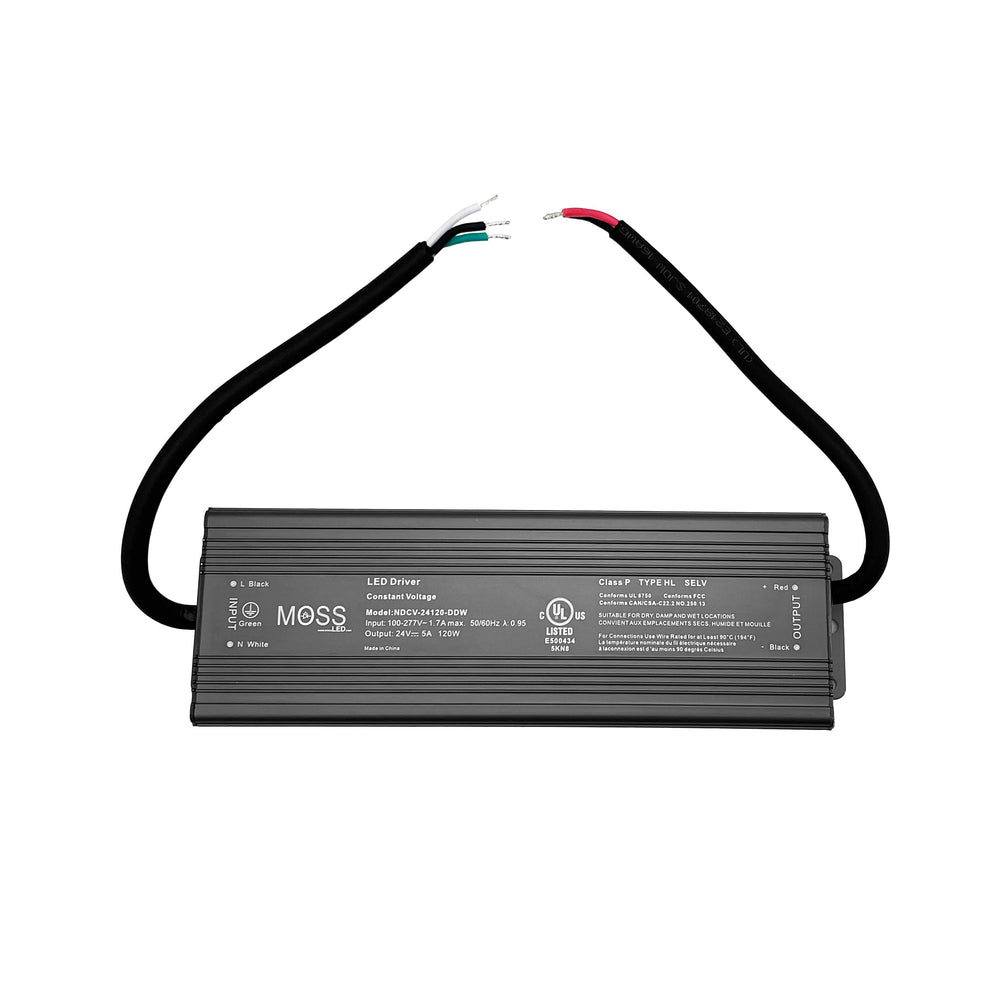

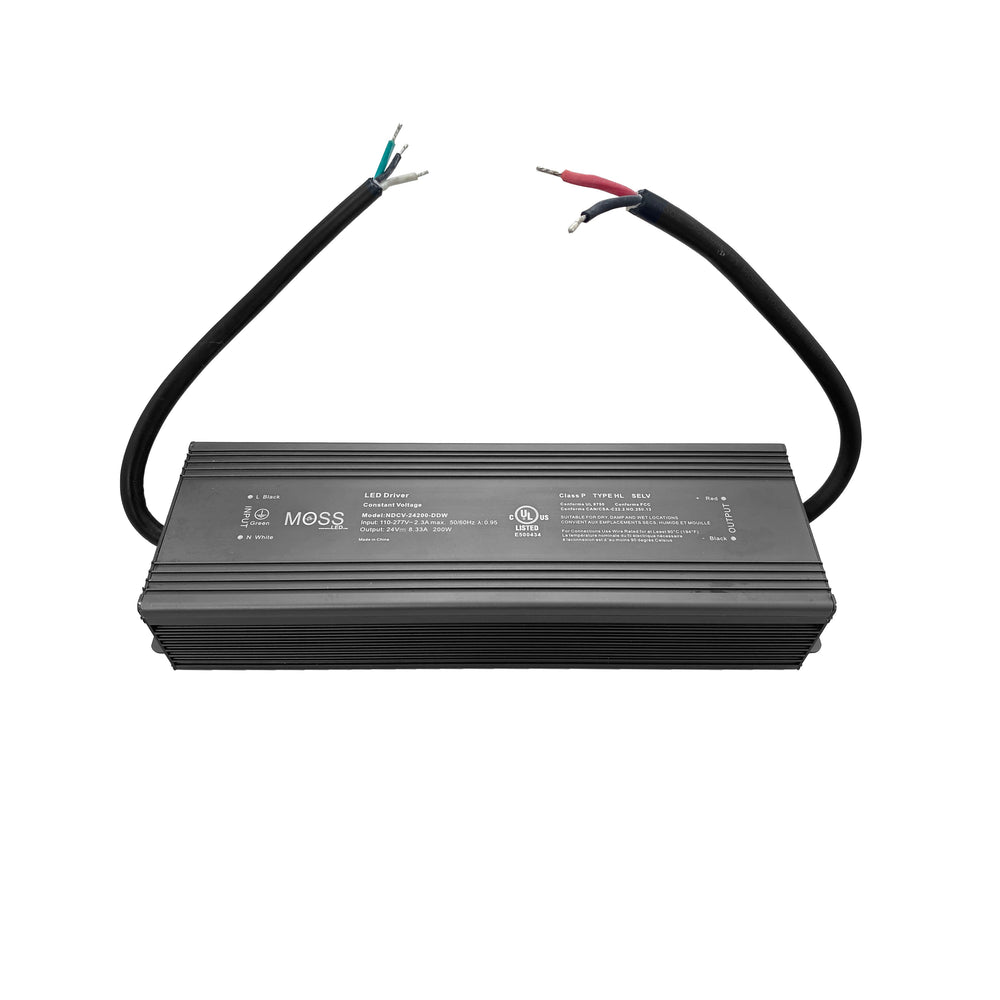

Model	:	NDCV-096-DDW	NDCV-120-DDW	NDCV-200-DDW	NDCV-300-DDW
Current (A)	:	4 A	5 A	8.34 A	12.5 A
Output Power (W)	:	96 W	120 W	200 W	300 W
Agency Approvals	:	FCC UL cUL Class 2 Class P SELV UL1310 and UL8750 CSA-C22.2.NO.250.13	FCC UL cUL Class P SELV UL8750 CSA-C22.2.NO.250.13	FCC UL cUL Class P SELV UL8750 CSA-C22.2.NO.250.13	FCC UL cUL Class P SELV UL8750 CSA-C22.2.NO.250.13
Size (millimeters)	:	230 X 70 X 43
Ripple & Noise (mV p-p)	:	150mVp-p	150mVp-p	150mVp-p	150mVp-p
Load Regulation ()	:	±0.5%	±0.5%	±0.5%	±0.5%
Line Regulation ()	:	±0.5%	±0.5%	±0.5%	±0.5%
Efficiency	:	83%@120VAC 88%@ 230VAC 87%@277VAC	83%@120VAC 88%@ 230VAC 87%@277VAC	83%@120VAC 88%@ 230VAC 87%@277VAC	83%@120VAC 88%@ 230VAC 87%@277VAC
Frequency Range	:	47 ~ 63 Hz	47 ~ 63 Hz	47 ~ 63 Hz	47 ~ 63 Hz
Universal AC input	:	90 ~ 305VAC 127 ~ 431VDC	90 ~ 305VAC 127 ~ 431VDC	90 ~ 305VAC 127 ~ 431VDC	90 ~ 305VAC 127 ~ 431VDC
Low leakage current	:	<0.5mA	<0.5mA	<0.5mA	<0.5mA
Protections:	:	short circuit, overload, over temp, auto recovery	short circuit, overload, over temp, auto recovery	short circuit, overload, over temp, auto recovery	short circuit, overload, over temp, auto recovery
AC Input	:	Bare Wire - Stripped & Tinned	Bare Wire - Stripped & Tinned	Bare Wire - Stripped & Tinned	Bare Wire - Stripped & Tinned
Housing	:	Fully enclosed aluminum housing	Fully enclosed aluminum housing	Fully enclosed aluminum housing	Fully enclosed aluminum housing
Ingress Protection Rating	:	Dry, Damp, and Wet Locations	Dry, Damp, and Wet Locations	Dry, Damp, and Wet Locations	Dry, Damp, and Wet Locations
Class	:	TYPE HL - Class 2 Class P	TYPE HL - Class P	TYPE HL - Class P	TYPE HL - Class P
Indicator	:	None	None	None	None
Voltage Adjustment Range	:	Fixed	Fixed	Fixed	Fixed
Output Connector Type	:	Bare Wire - Stripped & Tinned	Bare Wire - Stripped & Tinned	Bare Wire - Stripped & Tinned	Bare Wire - Stripped & Tinned
Current Adjustment Range	:	N/A	N/A	N/A	N/A
Output Polarity	:	N/A	N/A	N/A	N/A
Input Connector	:	Bare Wire OR Hospital Grade Edison Plug (HBL8115V)	Bare Wire OR Hospital Grade Edison Plug (HBL8115V)	Bare Wire OR Hospital Grade Edison Plug (HBL8115V)	Bare Wire OR Hospital Grade Edison Plug (HBL8115V)
Product Type	:	AC to DC Power Supply	AC to DC Power Supply	AC to DC Power Supply	AC to DC Power Supply
MFR Product Family	:	NDCV	NDCV	NDCV	NDCV
Operating Temperature	:	-40C to 80C	-40C to 90C	-40C to 90C	-40C to 90C
Power Supply Color	:	Dark Grey	Dark Grey	Dark Grey	Dark Grey
Wiring Color Codes Output	:	Refer to Label on PSU	Refer to Label on PSU	Refer to Label on PSU	Refer to Label on PSU

DOWNLOADS

Specification Sheet - Coming Soon
