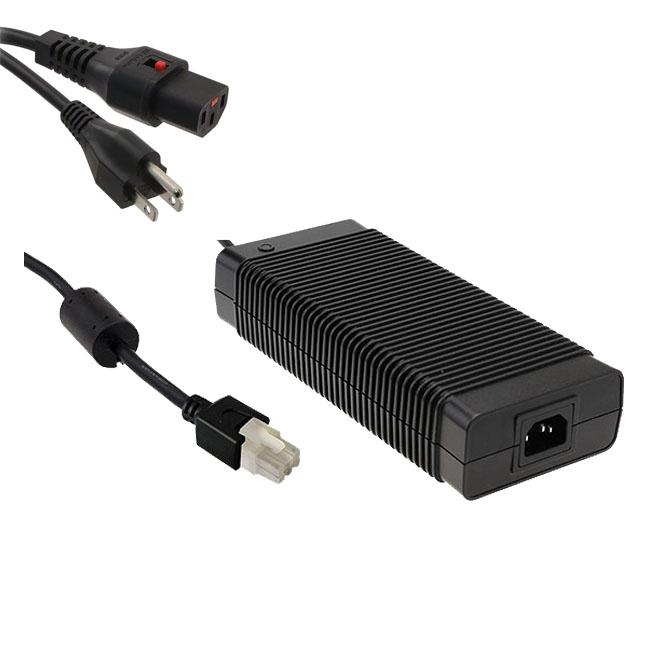

MeanWell GST280A12-C6P desktop style power supply 12V DC 252W with IEC power cable and DC output connector black fanless design for LED lighting

GST Desktop Style Power Supplies

SKU GST280A12-C6P
by MeanWell

Qty Discount
5 3%
10 6%
25 10%
The more you buy, the more you save!
Save 33%
$107.55
$71.70
Voltage
Wattage
Output Connector

Total Availability Total product quantity available to order. Product may ship from one warehouse or both warehouses, if required. If product needs to transfer from one warehouse to the other before shipping, a 24-hour delay may occur.

132 in stock

Location Quantity available at each warehouse location. Orders shipping from a single warehouse ship faster; orders requiring stock from both warehouses may be delayed by up to 24 hours for transfer.

Canadian Warehouse Ships from 1355 Fewster Drive, Mississauga, Ontario, L4W 1A2 Canada : 132 in stock
USA Warehouse Ships from 6405 Inducon Dr W, Sanborn, NY 14132, United States : Out of stock

Extremely reliable and robust medical-grade power supply. Perfect for on-camera and constant-on use with our FlexLED Tape and any DC LED product. Class I power unit ensures short-circuit, overload, over-voltage, and over temperature protection. Powerful, and reliable are the cornerstones of the GST line of power supplies from Mean Well.

  • Output Various Wattages
  • Class I
  • Fanless Design
  • UL Listed, suitable for dry & damp locations
  • 5 year warranty
  • 91% high efficiency
  • No Mounting Holes
  • 3 Year Warranty

SPECIFICATIONS

Voltage (V) : 12V DC 24V DC
Model : GST280A12-C6P GST280A24-C6P
Current (A) : 12 A 3.75 A
Output Power (W) : 252 W 280 W
Agency Approvals : Please Refer to Specification Sheet Please Refer to Specification Sheet
Size (MM) : 220MM X 95MM X 46MM 220MM X 95MM X 46MM
Ripple & Noise (mV p-p) : 120 200
Load Regulation () : +-5% +-3%
Line Regulation () : +-1% +-1%
Efficiency : 89.5% 93%
Frequency Range : 47 ~ 63 Hz 47 ~ 63 Hz
Universal AC input : 88 ~ 264VAC 120 ~ 370VDC 88 ~ 264VAC 120 ~ 370VDC
Leakage current (120VAC) : <1.5 mA < 1.5mA
Protections: : short circuit, over voltage, over current, over temperature short circuit, over voltage, over current, over temperature
AC Input : IEC320-C14 IEC320-C14
Housing : Fully enclosed plastic case Fully enclosed plastic case
Ingress Protection Rating : Indoor Use Only Indoor Use Only
Class : Class I power (with FG) Class I power (with FG)
Indicator : yes yes
Standby Power Consumption : < 0.1 watts < 0.1 watts
Output Connector Type : C6P C6P
Output Connector Diameter : N/A N/A
Output Polarity : PIN 1,2,3 +Vo & Pin 4,5,6 -Vo PIN 1,2,3 +Vo & Pin 4,5,6 -Vo
Product Type : AC to DC Power Supply AC to DC Power Supply
MFR Product Family : GST GST
Operating Temperature : -40C to 85C -40C to 85C
Power Supply Color : Black Black

DOWNLOADS

  1. 252 Watt 12VDC & 280 Watt 24VDC Specification Sheet
