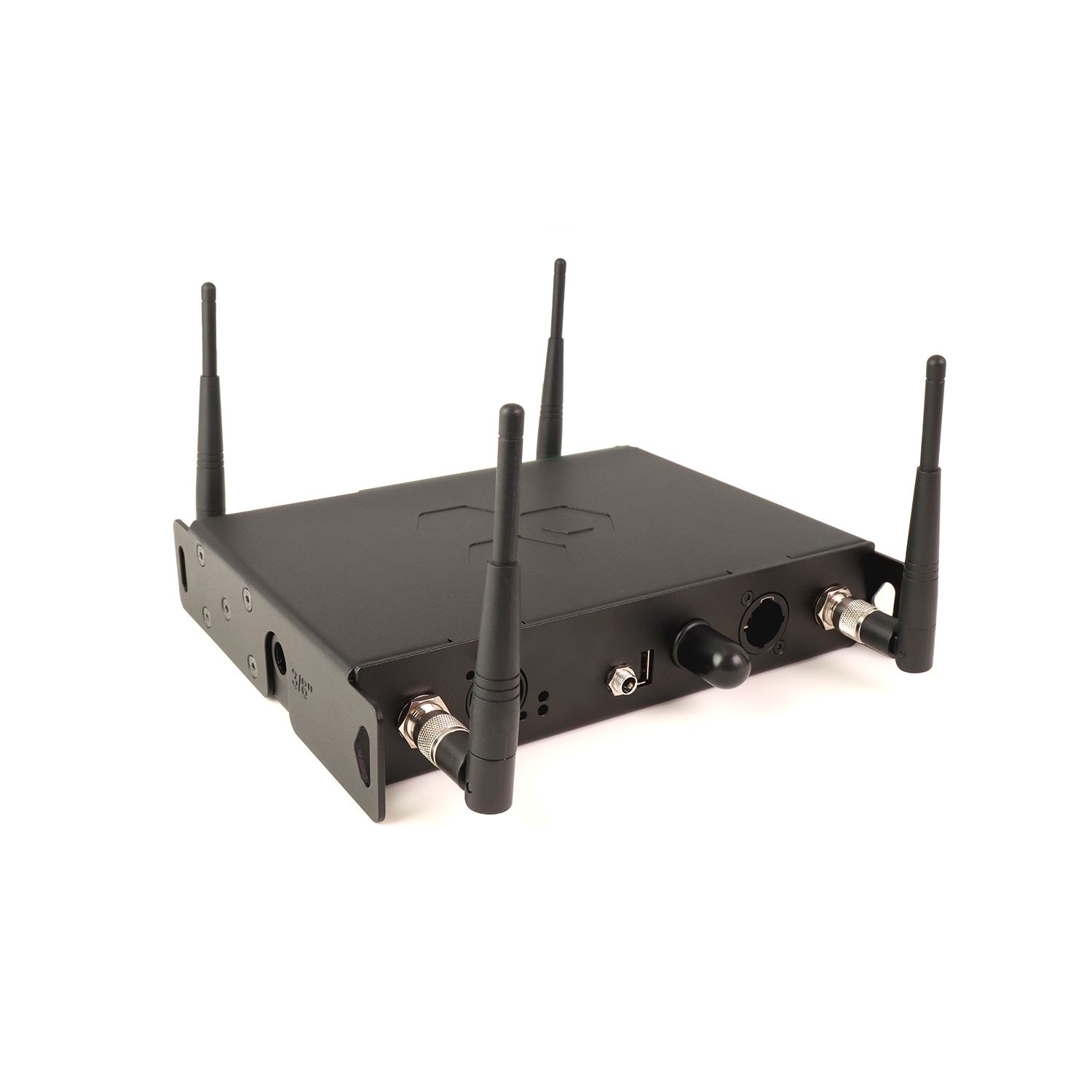

LumenRadio StarDust Eight Universe Transmitter, RDM, WiFi, Ethernet

SKU LMR-LRINSTX8
$5,022.00

Total Availability Total product quantity available to order. Product may ship from one warehouse or both warehouses, if required. If product needs to transfer from one warehouse to the other before shipping, a 24-hour delay may occur.

1 in stock

Location Quantity available at each warehouse location. Orders shipping from a single warehouse ship faster; orders requiring stock from both warehouses may be delayed by up to 24 hours for transfer.

Canadian Warehouse Ships from 1355 Fewster Drive, Mississauga, Ontario, L4W 1A2 Canada : 1 in stock
USA Warehouse Ships from 6405 Inducon Dr W, Sanborn, NY 14132, United States : Out of stock

Stardust takes industry leading CRMX technology to the next level with the introduction of features for the most demanding situations, setting the standards for Wireless DMX by providing unprecedented control and flexibility. Capable of delivering eight DMX/RDM universes and expanding the function of Cognitive-Coexistence with the new Fleet Alliance*, it has the reliability you trust and the amount of universes you need. The enhanced radio design allows for record breaking ranges on all eight universes simultaneously.

The onboard WiFi and Ethernet provides both configuration via web portal and transmission of sACN and Art-Net, while the Bluetooth* interface enables configuration via the CRMX Toolbox App.

With the intuitive color screen it’s easier than ever to configure, using operation profiles to quickly change settings on the fly while the built-in backup battery makes sure the show will go on.

LumenRadio continues to deliver the most reliable Wireless DMX with both CRMX and W-DMX compatibility, featuring Linking Key* along with industry standard 5 ms latency, error correction and 128 bit encryption at full refresh rate for all eight universes.

*Fleet Alliance enables expansion of your universes beyond 8 as the transmitters automatically can coordinate the spectrum, providing many more universes without the need for frequency planning.

*Linking Key encrypts the CRMX transmission with user specified keys, making it possible to move between CRMX networks in a completely new, smooth, way.



FEATURES
  • Eight Universe CRMX Transmitter
  • DMX/RDM, sACN and Art-Net 1-4
  • Ethernet, 5 GHz WiFi and Bluetooth (available later)
  • Configuration via Web portal, App or Front panel
  • Compatible with CRMX and W-DMX G3/G4s

Technical Specifications


Supported Protocols

  • DMX / RDM
  • sACN / Art-Net 1-4
  • CRMX
  • W-DMX G3 / G4s
  • Ethernet
  • WiFi 802.11b/g/n/ac
  • Bluetooth 5.0 (available later)

RF Characteristics

  • Frequency range: 2402-2480 MHz
  • Radio module: 4 x TimoTwo
  • 5ms latency
  • 128-bit encryption
  • Forward Error Correction

Connectors

  • Ethernet: RJ45
  • Antennas: 4 x RP-TNC
  • DC: 2.5mm/5.5mm Barrel connector
  • AC: powerCON Tru1

Power

  • PoE
  • DC 10-20 V
  • Backup Battery (15 min. runtime)
  • AC 100-240 VAC

Physical

  • IP20 Aluminium enclosure
  • Front panel color screen and rotary knob
  • M10 and ⅜” Threads
  • Rack and wall mount accessories
  • V-Lock battery mount accessory
  • 22 x 20 x 4.4 cm

      Downloads

      1.  Sales Flyer
      2.  LumenRadio StarDust User Manual
