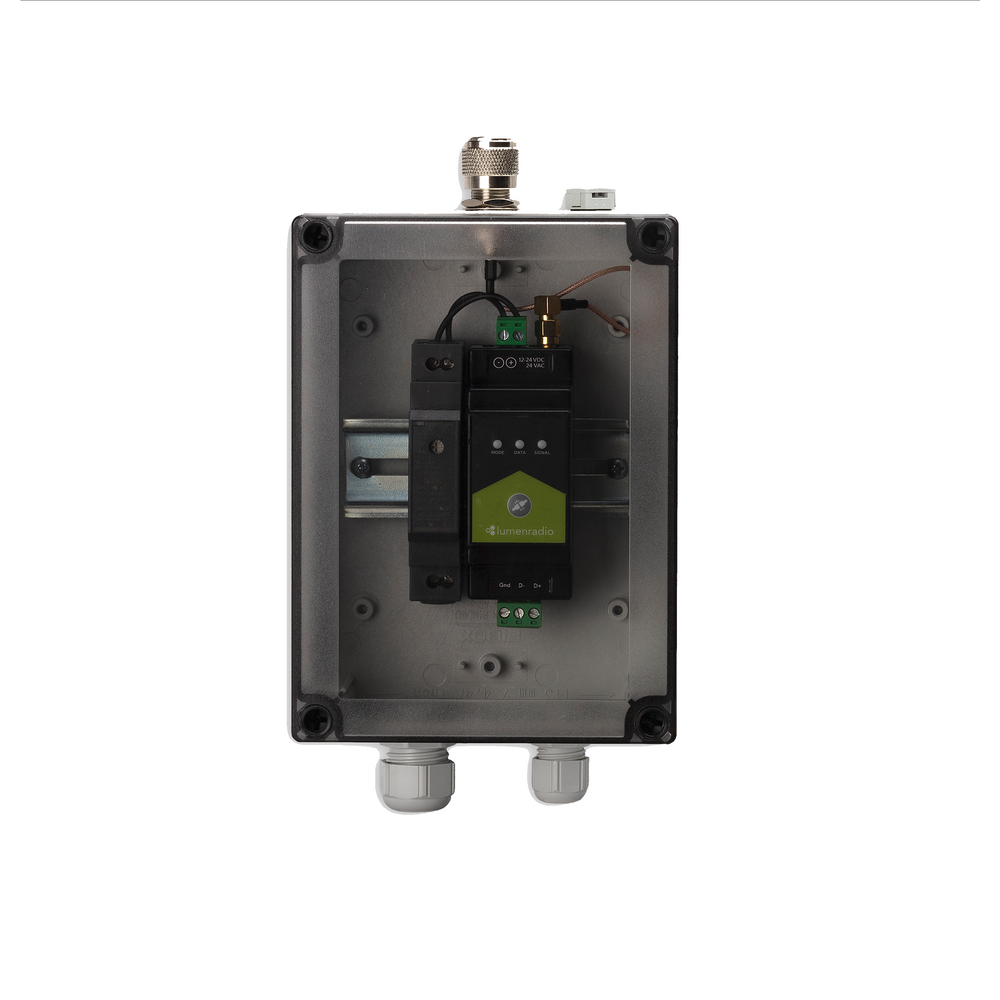

IP67 certified enclosure, including the DIN rail, cable glands, vent and RP-SMA to N antenna cable (between DIN rail device and the enclosure) for outdoor antennas.
Suitable for all of LumenRadio's DIN rail devices: Galileo TX/RX, Galileo MAX, W-DALI DIN rail, W-Modbus DIN rail and W-BACnet DIN rail.
The DIN rail is 6 units wide with space for multiple DIN rail devices and PSU or one Galileo MAX without PSU.
LumenRadio DIN rail device, DIN rail power supply and cables are not included.
TECHNICAL SPECIFICATIONS
Dimensions: 130 x 180 x 77 mm (5.1 x 7.1 x 3.0 in.)
Dimensions (incl. connectors): 130 x 230 x 77 mm (5.1 x 9.1 x 3.0 in.)
Number of DIN modules in width: 6
Antenna connector (outer): N female
Antenna connector (inner): RP-SMA male
Impedance RF cable: 50 Ohms
Cable gland size (M24): 7 – 13 mm (1/4 – 1/2 in.)
Cable gland size (M24): 4.5 – 10 mm (1/6 – 3/8 in.)
Material (enclosure): Polycarbonate
IP rating: IP67
Impact resistance: IK08
UV resistance: UL 746C
Flamability: UL94 V-0
NRTL listing: UL/cUL (File number E75645)
