Great for quickly splicing wires together. Think of these as the best marrette's you've never used!

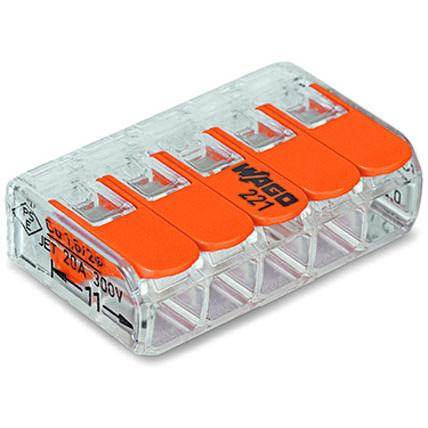

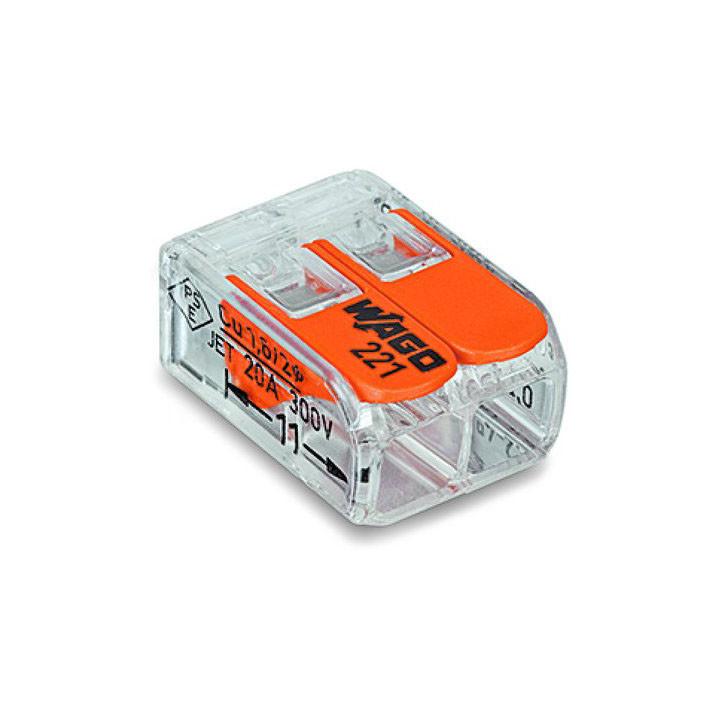

5-Position and 2-Position spring loaded quick connector.

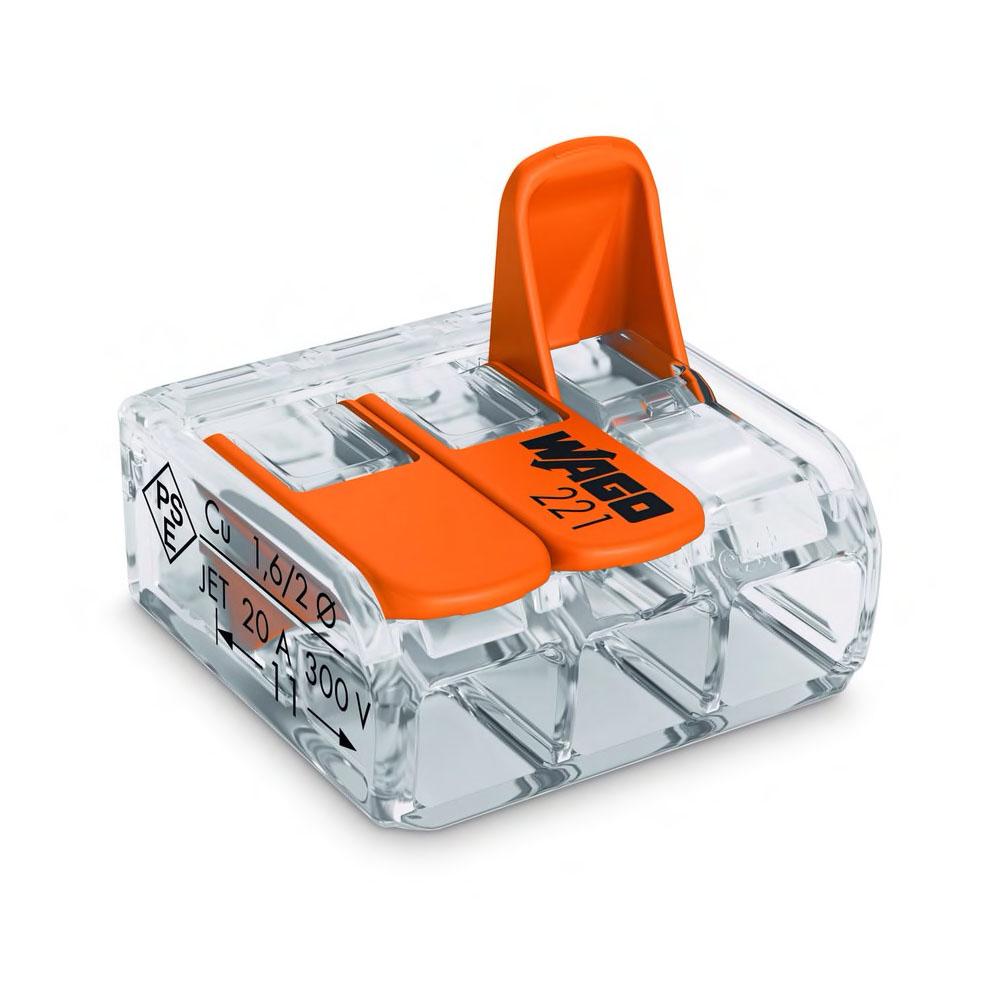

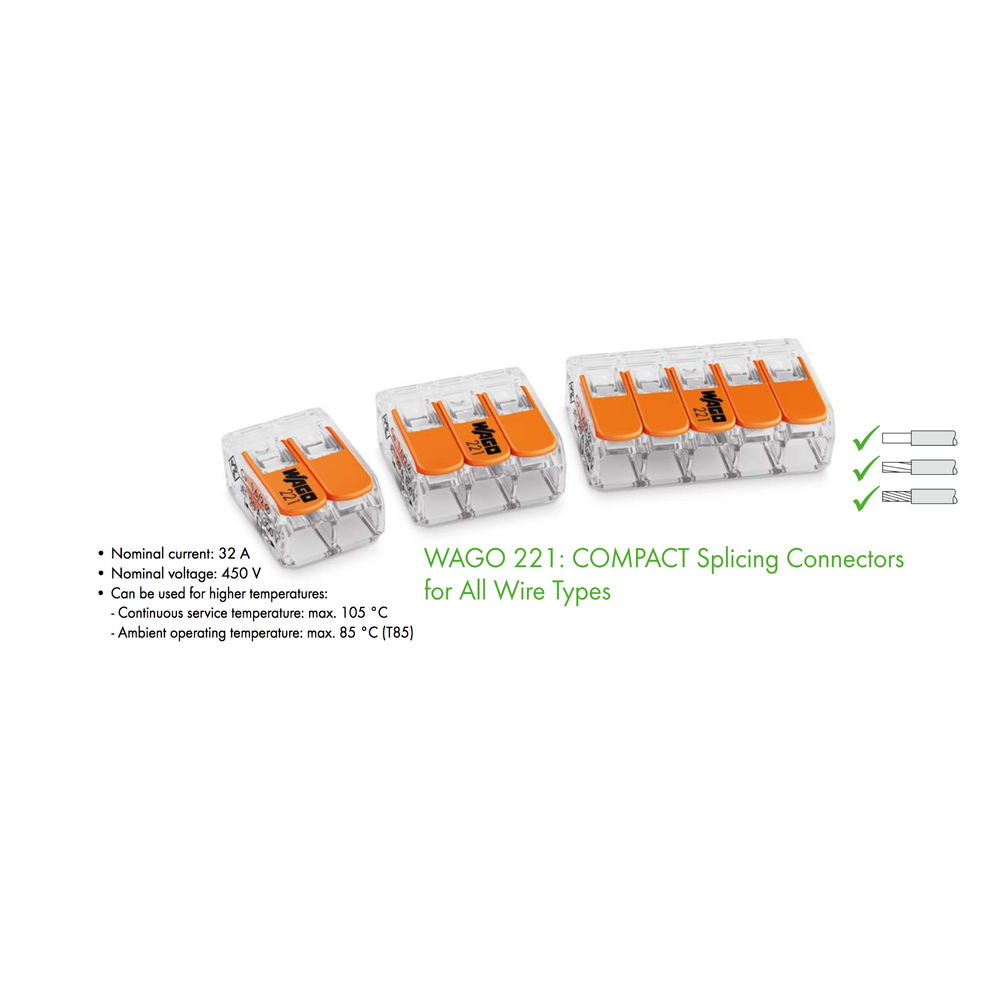

COMPACT splicing connectors for all wire types; 5-conductor and 2-conductor terminal block; with operating levers
WAGO's new "superstars" for electrical installations allow solid, stranded and fine-stranded wires to be connected faster, more reliably, while minimizing the amount of space in junction boxes.
- Up to 40% smaller less space required than for the original WAGO 222

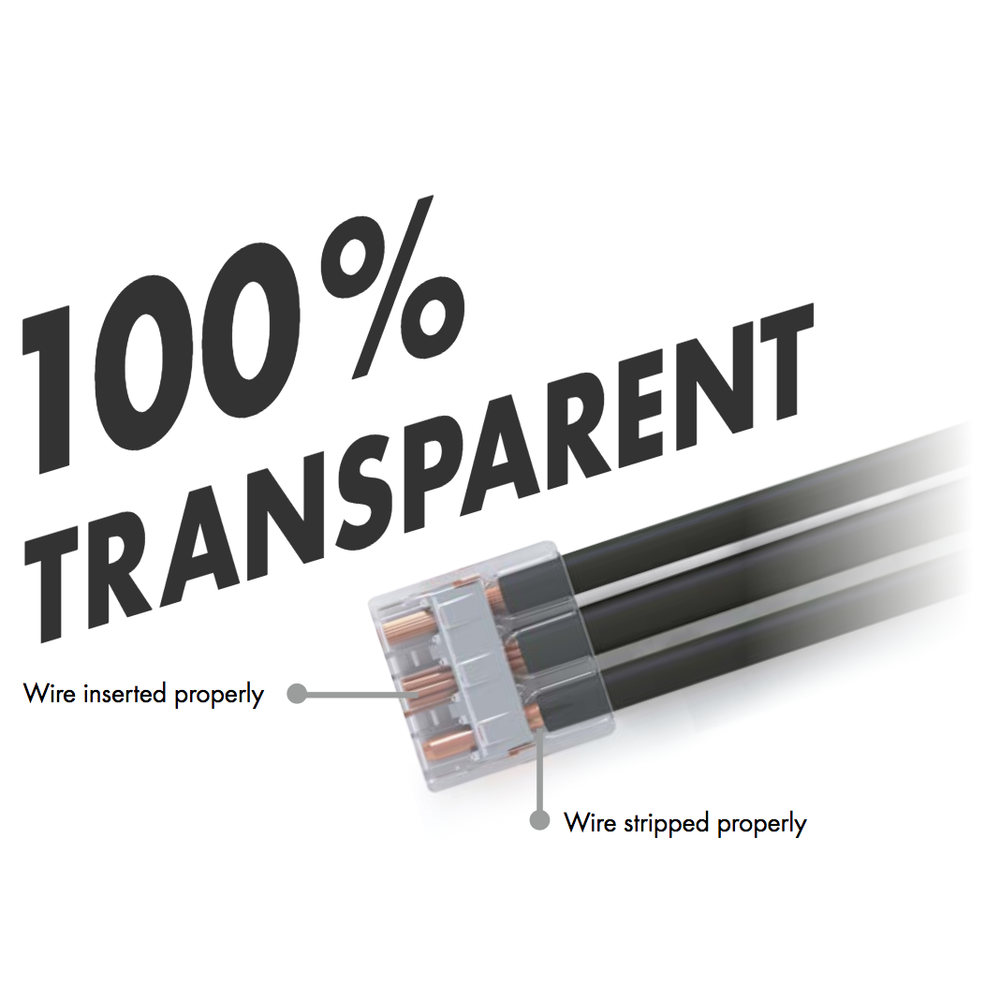

- Transparent housing for visual inspection shows that the wire is inserted properly and stripped to the correct length
- Easy termination via reduced operating force

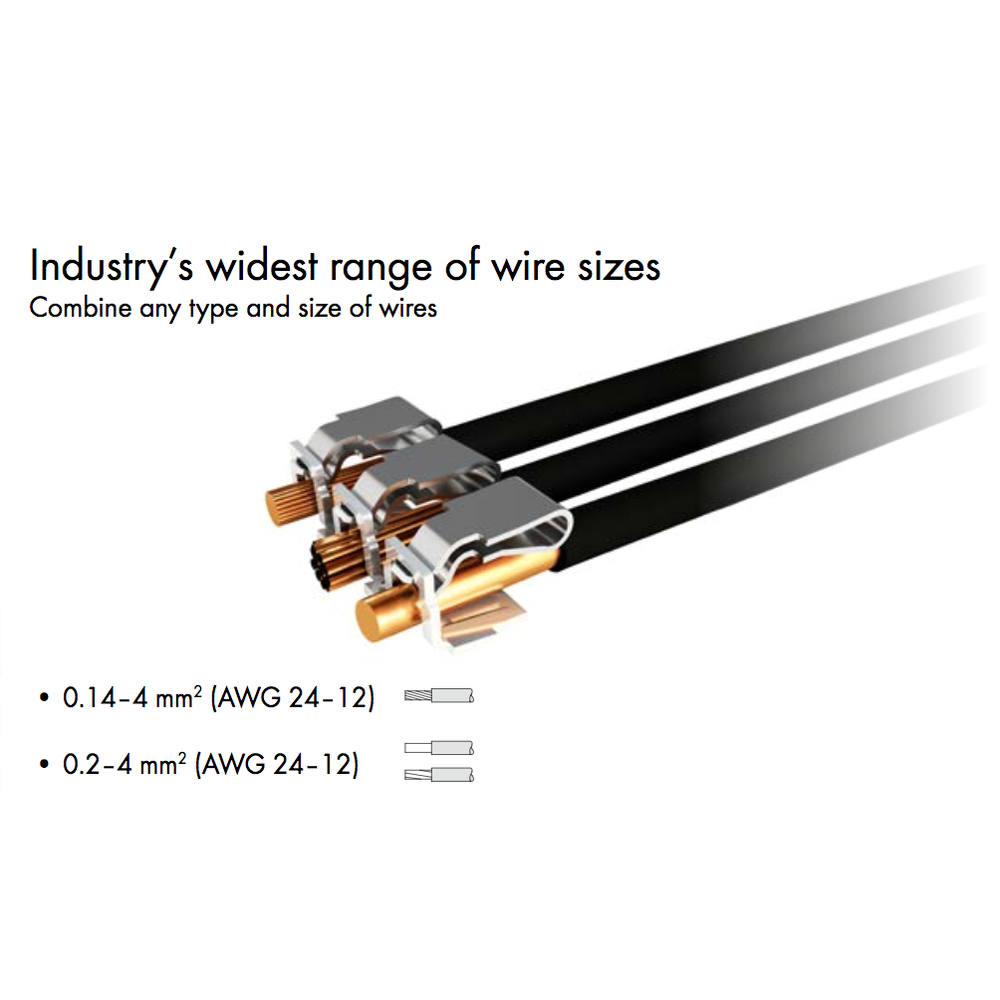

- Any combination of wire types and sizes from 0.14 to 4mm (24-12AWG) is possible
- Two test ports for all standard test probes

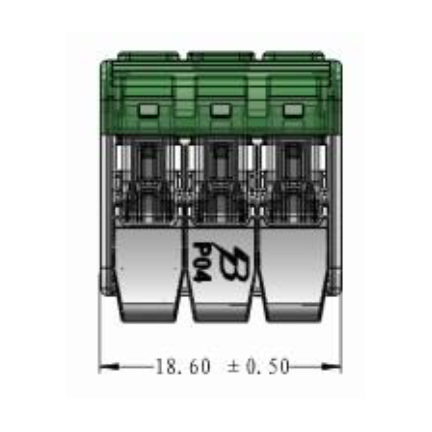

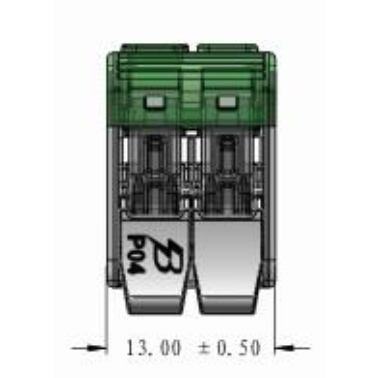

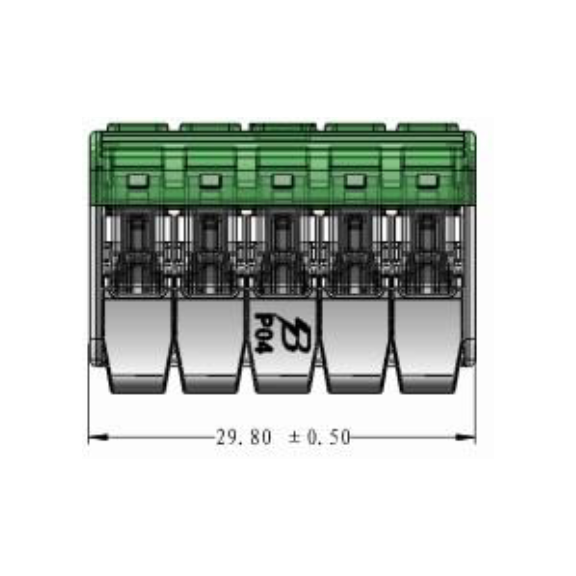

- Dimensions (WxHxL): 29.9x8.3x18.6mm
Product Information
-
No. of Positions 5 Ways & 2 Ways
- Rated Voltage 450V
- Rated Current 32A
- Pitch Spacing -
- Wire Size AWG Min 24AWG
- Wire Size AWG Max 12AWG
- Conductor Area CSA 4mm
- Wire Connection Method Push In Lock
- Product Range 221 Series
 Specification Sheet
