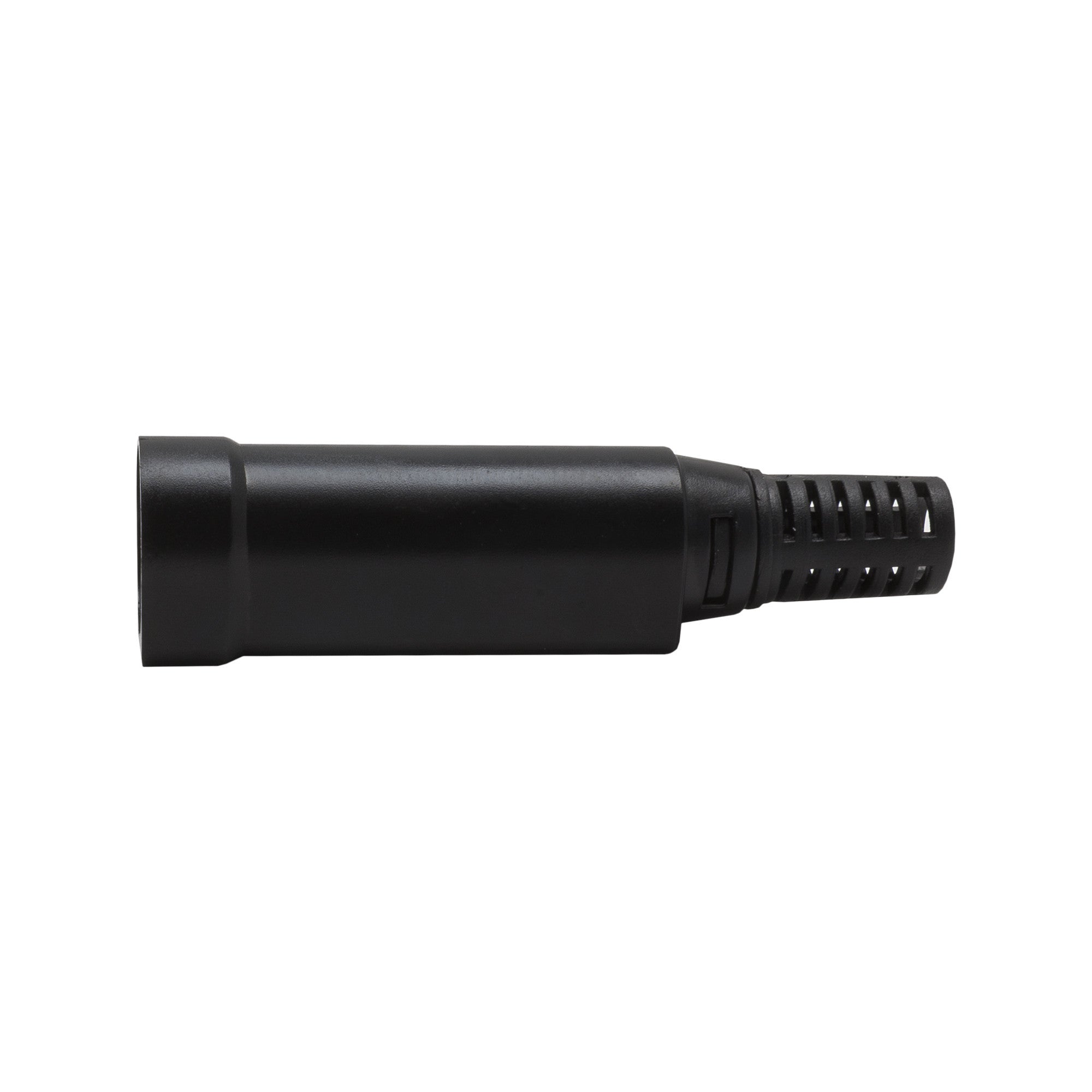

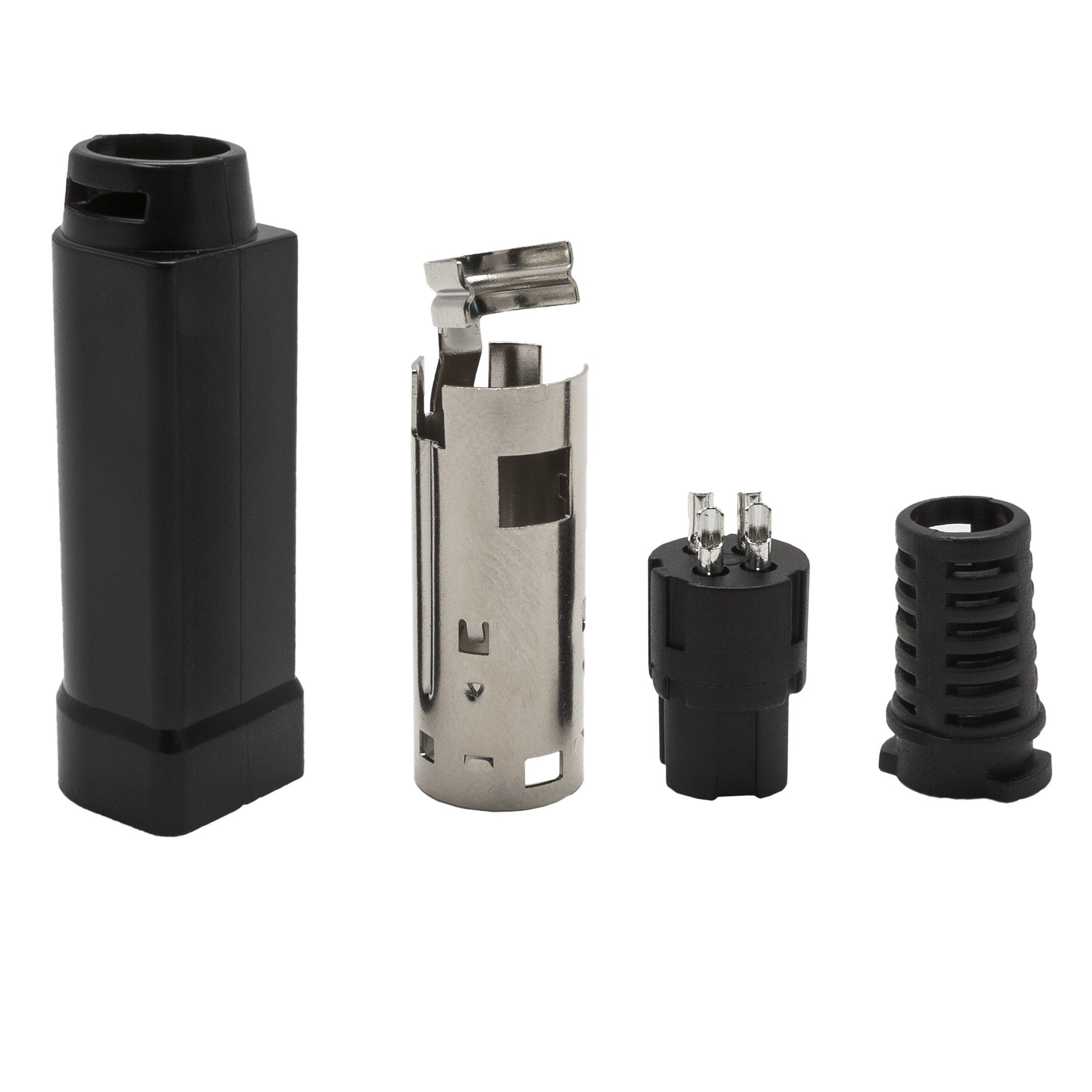

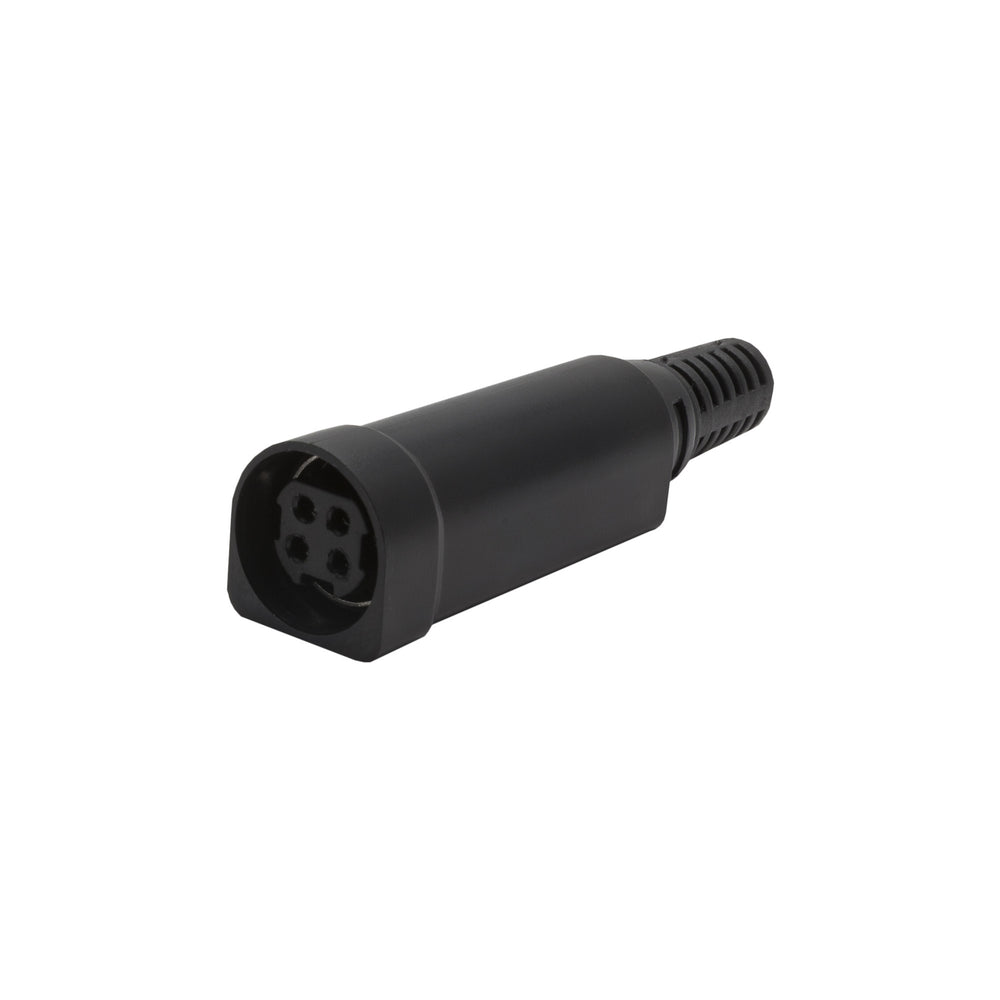

Kycon R7B series DC female field installable plug high current 4-pin connector black with cable strain relief front angled view

DC Female Field Installable Plug High Current

SKU KCN-KPJXCM4S
by Kycon
Save 30%
$7.99
$5.63
Title

Total Availability Total product quantity available to order. Product may ship from one warehouse or both warehouses, if required. If product needs to transfer from one warehouse to the other before shipping, a 24-hour delay may occur.

362 in stock

Location Quantity available at each warehouse location. Orders shipping from a single warehouse ship faster; orders requiring stock from both warehouses may be delayed by up to 24 hours for transfer.

Canadian Warehouse Ships from 1355 Fewster Drive, Mississauga, Ontario, L4W 1A2 Canada : 362 in stock
USA Warehouse Ships from 6405 Inducon Dr W, Sanborn, NY 14132, United States : Out of stock
  • 4-Position Locking Female High Current DC Plug
  • Connects with all OWA & GSM Power Supply lines over 100W
  • Mates with: KPPX Series Plugs
  • High Current 4-Pin DIN Barrel Plug R7B



SPECIFICATIONS

Connector Type : Plug
Suggested Wire : #18
Color : Black
Current Rating : 7.5 A
Mounting Style : Cable
Number of Conductors : 4
Voltage Rating : 48VDC
Durability : 1000 cycles
Shielding : No
Internal Switches : No



DOWNLOADS

  1. Plug Specification
