Edison Plug - HBL8115V

SKU HBL8115VB
by Hubbell
$12.30
Color
Availability: Translation missing: en.general.icons.icon_check_circle icon 42 in stock, ready to be shipped

Rugged hospital grade edison plug designed for being attached to our installation-grade family of power supplies or anywhere a standard wall outlet plug is required.

Hospital Grade Valise Plug, 15 A Amperage, 125 V Voltage, White or Black Color, 0.3 in. to 0.660 in. Cord

  • Industry-standard 15A Hubbell Connector
  • Straight Blade Commercial Specification Grade and Commercial Hospital Grade GFCI Duplex Receptacles
  • Nylon material housing. 18-12 AWG copper stranded or solid conductor terminal accommodation.

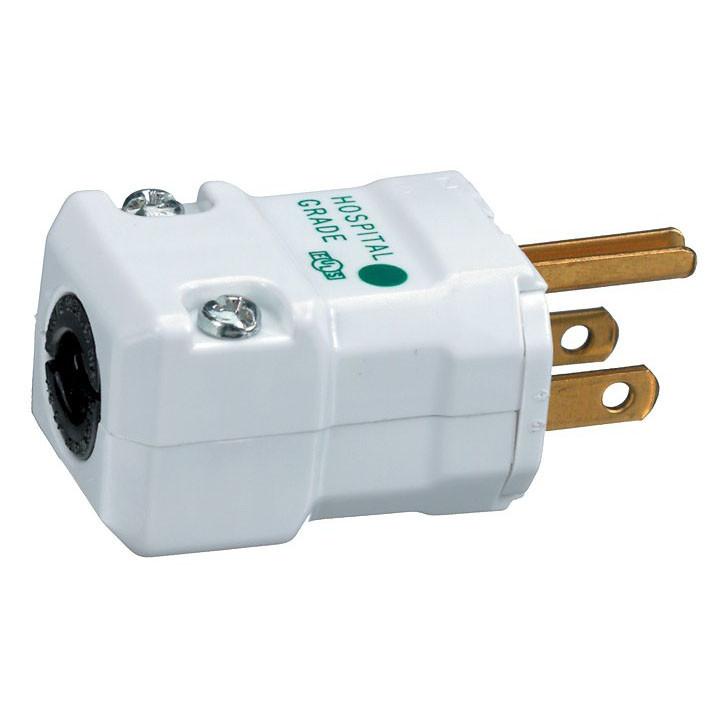

  • HBL8115V (White)

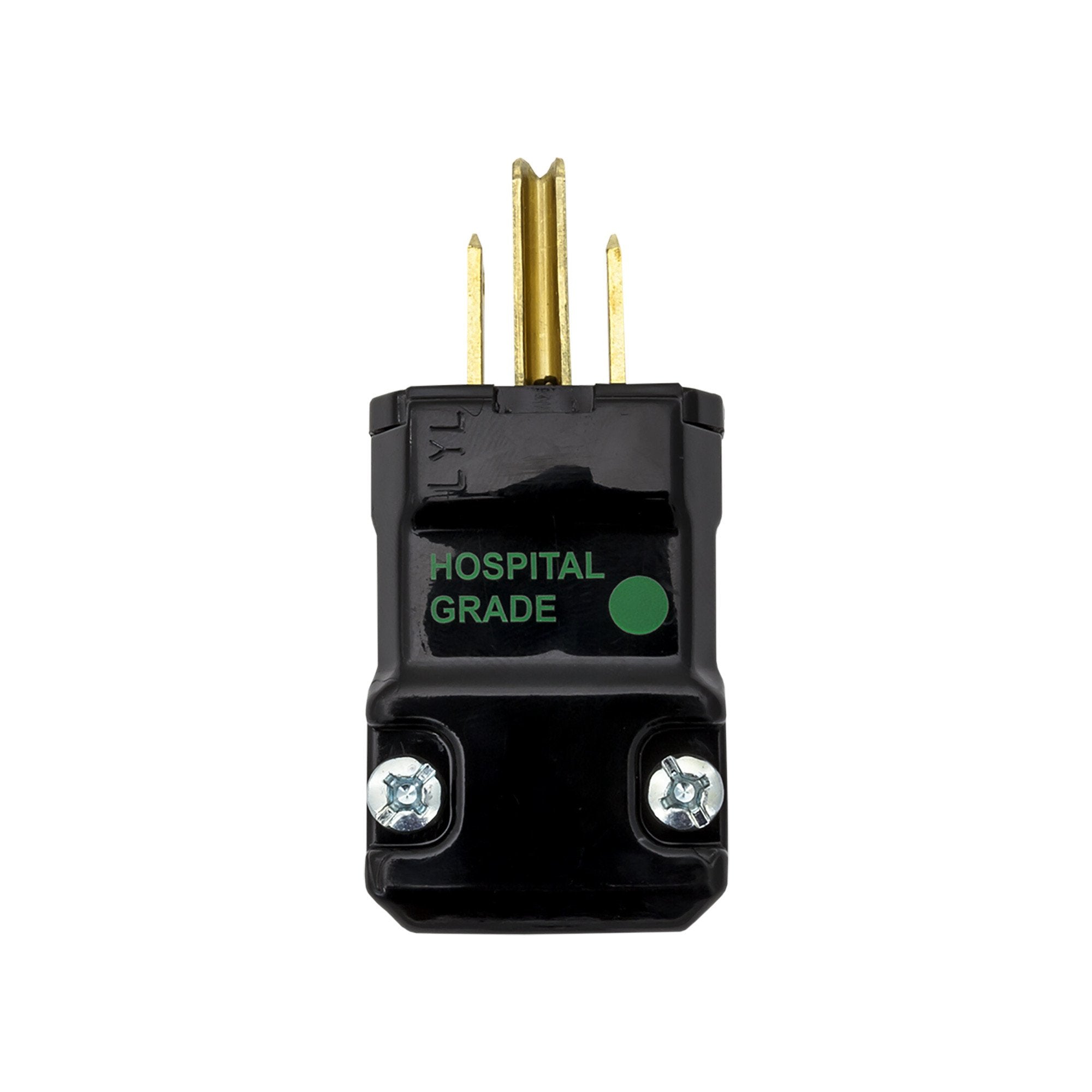

  • HBL8115VB (Black)



SPECIFICATIONS



Agency Approvals : UL, CSA
Amperage : 15 A
Brand/Series : Valise Series
Color : White / Black
Contact Type : Pin
Current, Rating : 15 A A
Diameter, Cord : 0.3 to 0.66
Dielectric Voltage : 2000 V (Min.)
Flammability : UL 94V2
Grade : Hospital
IP Rating : IP20
Material, Blades Contact : Brass
Material, Contact : Brass
Material, Ground Screw : Stainless Steel
Material, Housing : Nylon
Material, Terminal Screw : Stainless Steel
Material, Wire Clamps : Steel
NEMA Type : 5-15P
Number of Contacts : 3
Number of Poles : 2 Pole
Primary Type : Straight Blade
Temperature, Operating, Maximum : 75 C
Temperature, Operating, Minimum : -40 C
Terminal, Accommodation : 18-12 AWG Copper Stranded or Solid Conductor
Termination : Screw
Type : Cable Plug
Voltage, Rating : 125 V V
Weight : 0.15 lbs.
Wire, AWG : #18-#12
UPC : 78358501908



DOWNLOADS

  1. Specification Sheet
