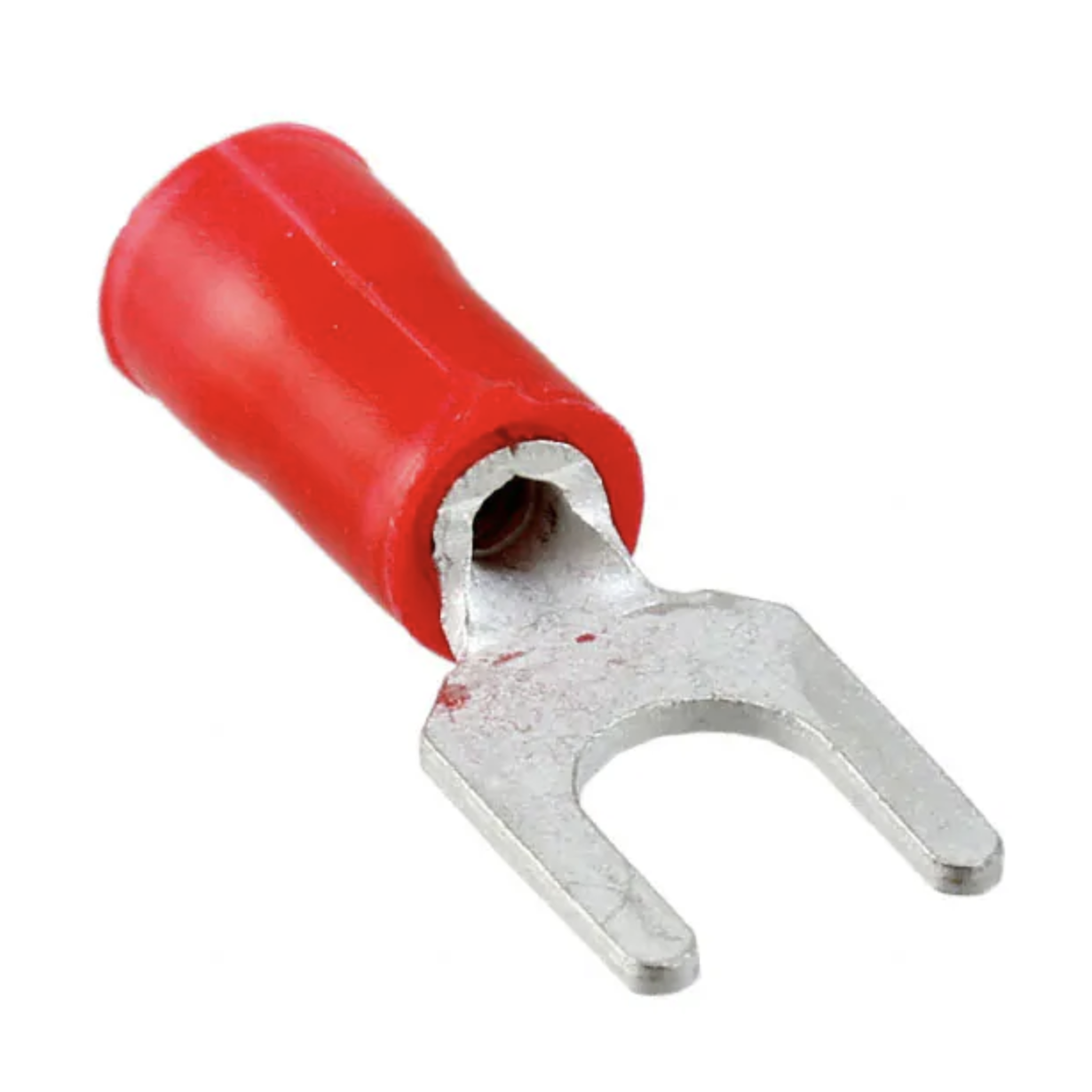

Perfect for making quick, permanent, secure connections.
Low profile for limited space applications
Internal wire stop assures proper length of insertion into terminal barrel.
These terminals mate onto our Dodici and VentiQuattro power input terminal lugs.
SPECIFICATIONS
| Style | : | Fork Vinyl | Fork Vinyl |
| Wire Range In. (mm?) | : | 16 - 14 AWG | 22 - 16 AWG |
| Barrel Configuration | : | Standard | Standard |
| Base Material | : | Copper | Copper |
| Insulation | : | Nylon | Nylon |
| Panduit Color Code | : | Blue | Red |
| Plating Type | : | Tinned | Tinned |
| Part Number Series | : | Panduit | TE |
| Length In. (mm) | : | 0.886" (22.50mm) | 0.831" (21.10mm) |
| Max. Insulation Diameter In. (mm) | : | N/A | N/A |
| Stud Size | : | M4 Stud | M4 Stud |
| Max. Voltage Rating | : | 600V | 300V |
| CSA Certified | : | Yes |
Yes |
| UL Listed | : | Yes |
Yes |
| CE Compliant | : | No | No |
| RoHS Compliancy Status | : | Compliant | Compliant |
