DMXTerminator RJ45 (Ethernet)

SKU CPT-DMXTERM-RJ45
by CPoint
$5.32
Availability: Translation missing: en.general.icons.icon_check_circle icon 202 in stock, ready to be shipped
Accessories

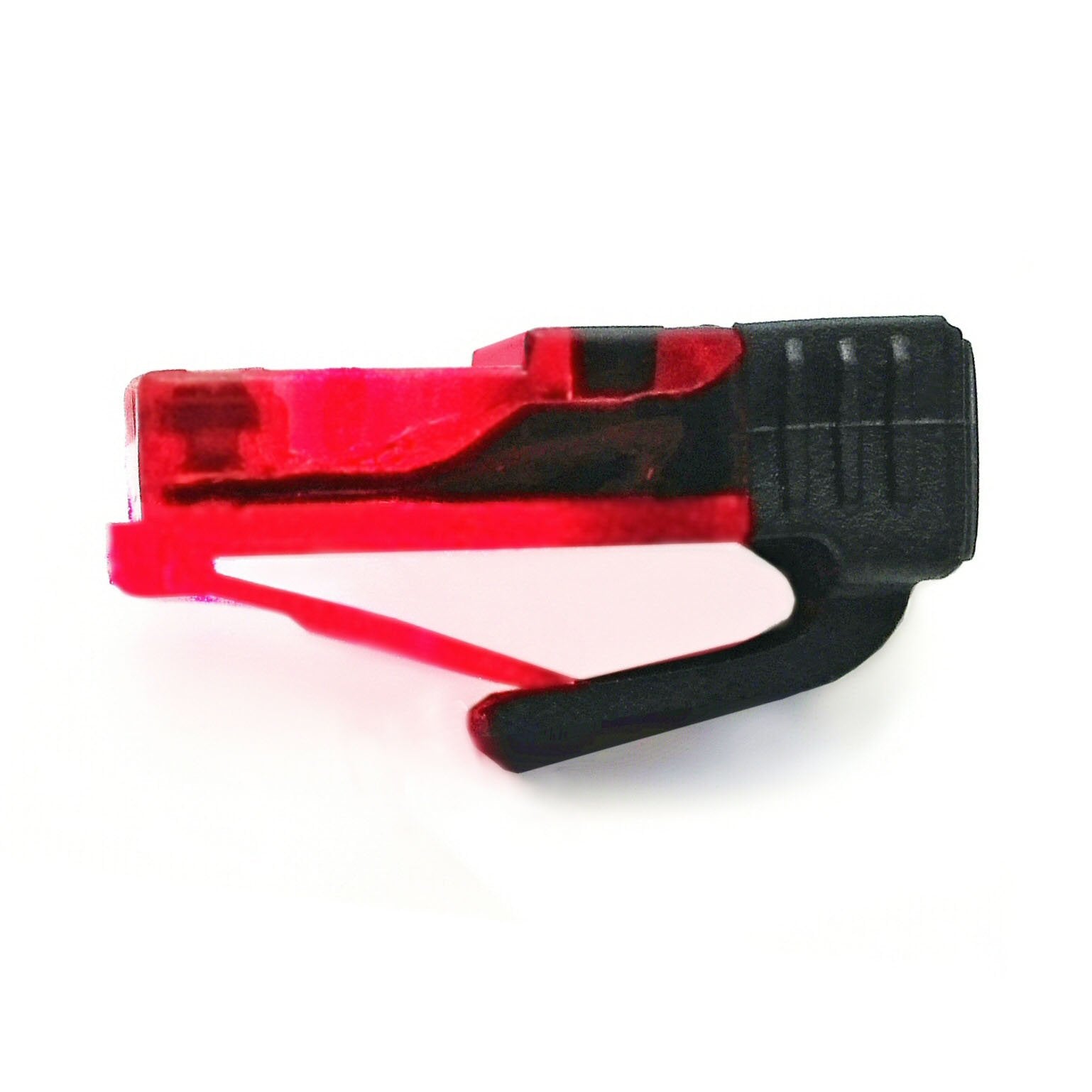

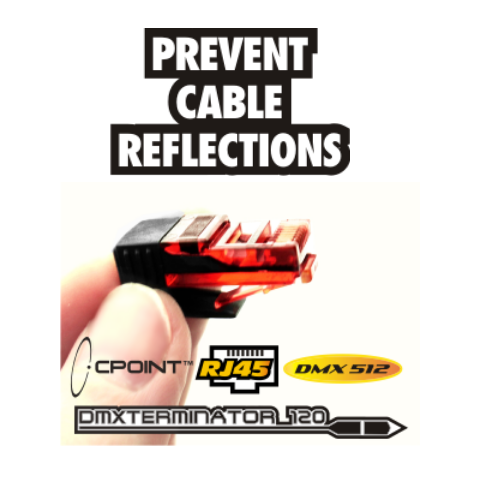

DMXterminator 120

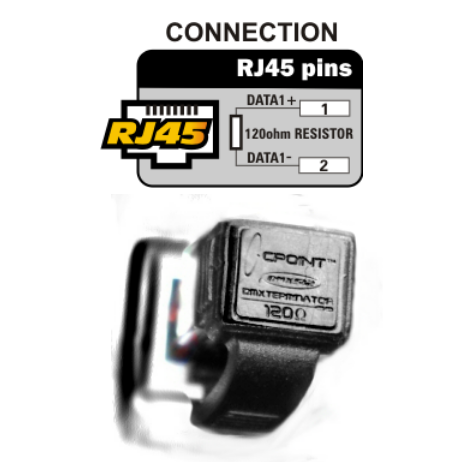

is a RJ45 connector plug with a 120 Ohm resistor inside connected to the data lines. Plug this in at the last DMX unit and the DMX source perceives the cable as endless. Otherwise reflections are created in the end of the cable causing problems that are very difficult to find. Avoid this by terminating the end of the cable.

DMXterminator 120, Facts & Features:

  • A 120 Ohm DMX512 Terminator in a RJ45 connector.
  • Use to avoid data signals being reflected from the end of the data cable.
  • Professional look.
  • Weight including packaging,
    8.4g/0.29oz.
  • Molded housing.
  • Protected “click-lock-tab”.
  • Gold plated pins on connector.
  • Sturdy shell style packaging.
  • Easy to use.
  • Low cost.

DOWNLOADS

  1.   Specification Sheet
