DC Plug Adaptors

Kycon

MWL-DCPLUG-R7BF-P1M


Collections: Cables & Connectors, NEW

Category: 12V, 24V, Cable, Professional

Type: Cables


DC Plug Adaptors that are very convenient for adapting the type of connector on some of our popular MeanWell power supplies (OWA, GSM, GST families)

Three types available.

R7B -> P1M (4 pin to DC barrel 2.5 X 5.5)
DC Plug 2.1x 5.5x11mm for GST120-220, GSM120-220, OWA-90U/120U  Standard R7B 4Pin with lock plug KYCON KPPX 4P equivalent

R7B -> P1J (4 pin to DC barrel 2.1 X 5.5)
DC Plug 2.1x 5.5x11mm Converter; for GST120-220, GSM120-220, OWA-90U/120U Adaptor with Standard R7B 4Pin with lock plug KYCON KPPX 4P equivalent

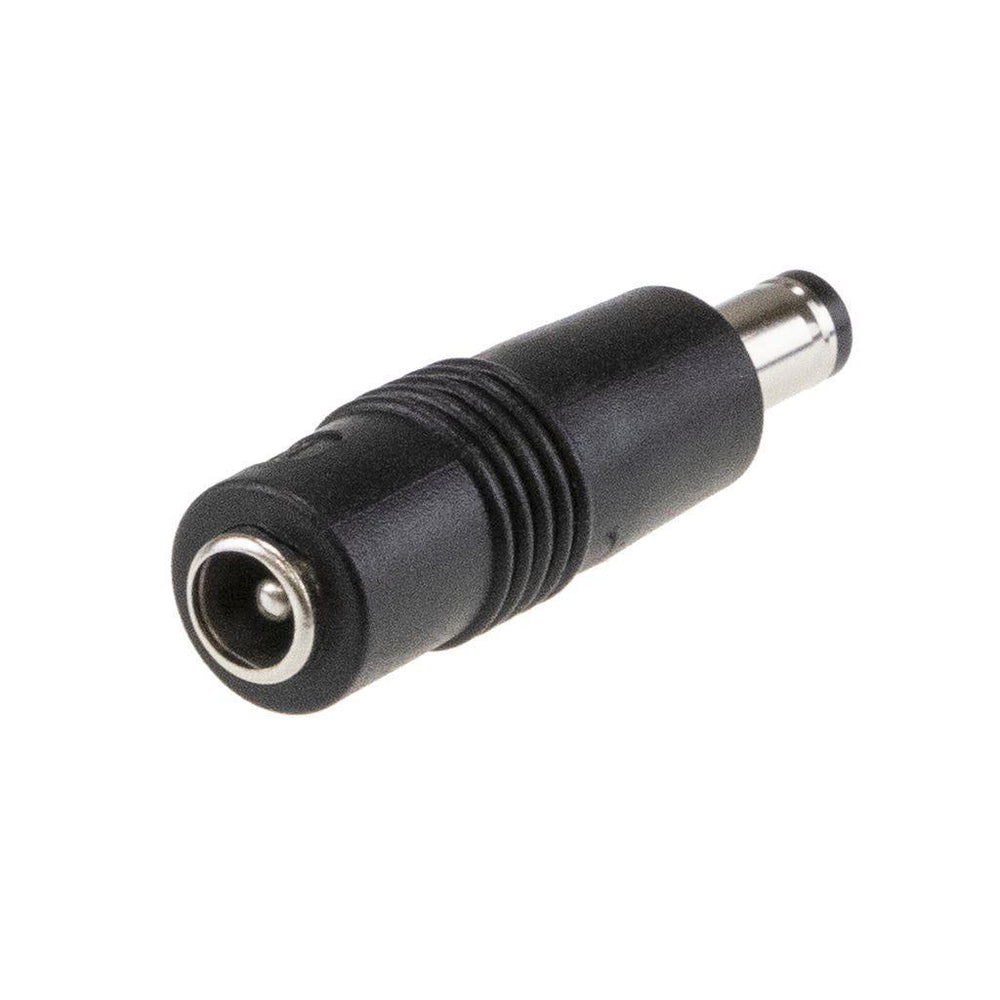

P1J -> P1M (DC Barrel 2.1 X 5.5 to DC Barrel 2.5 X 5.5)
Adaptor DC Plug 2.5x5.5x11mm Converter; for GST18-60, GSM06-60, GEM06-60, GE12-40, SGA12-60, GS06/15, OWA-60U/E Adaptor with Standard P1J tuning fork plug OD 5.5mm; ID 2.1mm; Length 11mm



  • 4-Position Locking Male High Current DC Plug
  • High Current 4-Pin DIN Locking Plug R7B TO P1M Standard DC Barrel Connector


SPECIFICATIONS

Connector Type : R7BF - P1M R7BF - P1J P1J - P1M
Housing Material : Thermoplastic
Thermoplastic Thermoplastic
Color : Black Black Black
Adaptor Type : R7B -> 2.5 X 5.5 X 11MM
R7B -> 2.1 X 5.5 X 11MM
Mounting Style : Free Hanging Free Hanging Free Hanging
Number of Contacts : 4 -> 2 4 -> 2 2
Voltage Rating : 48VDC 48VDC 48VDC
Durability : 1000 cycles 1000 cycles 1000 cycles
Shielding : No No No
Internal Switches : No No No
