Precision DMX - RGB
PR41
Specific Product Variant Sold Out

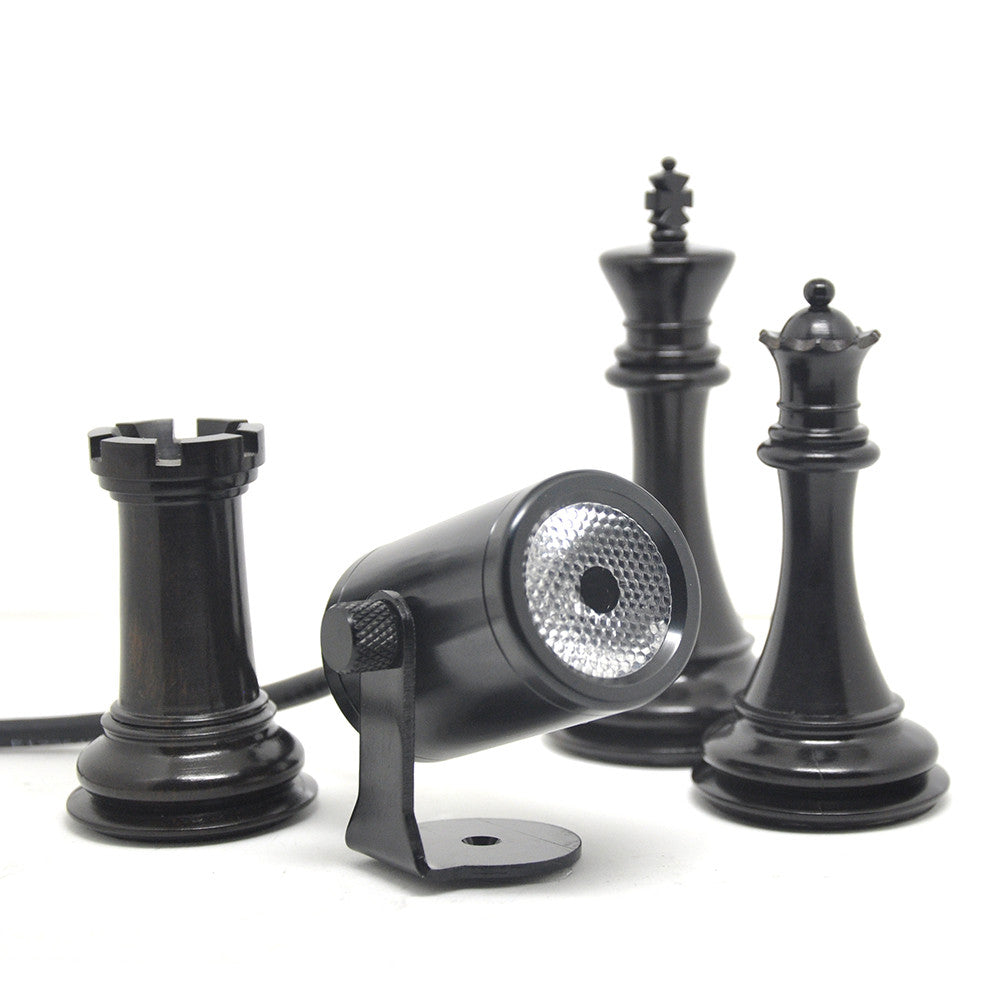

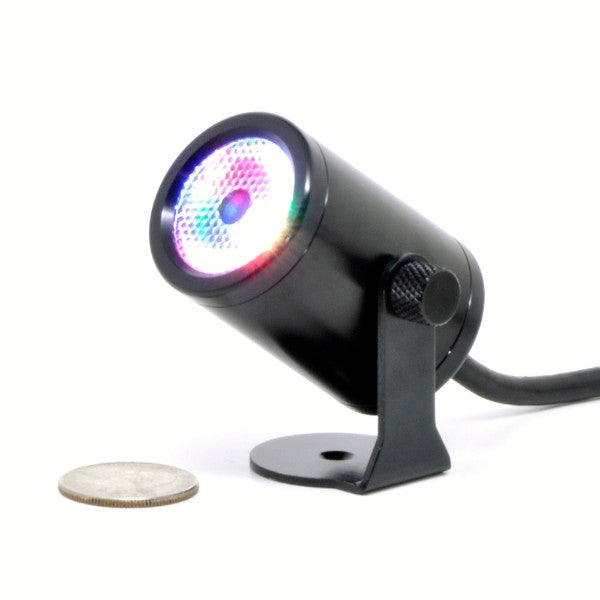

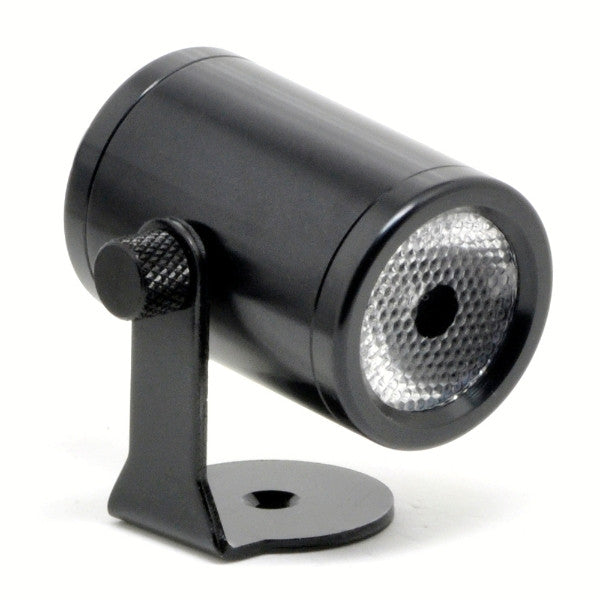

The Precision DMX is the world's smallest DMX controllable theatrical floodlight. This RGB fixture is smaller than a fist yet packs comparable punch to traditional fixtures several times its size! No other fixture on the market comes close to the compactness of this fixture with all the internal circuitry and intelligence built in. The Precision DMX is a microprocessor based intelligent lighting fixture that can be controlled to generate a wide range of vivid colors. Tunable preset functions allow the user to generate various patterns without complex signaling. A built-in flicker generator can create unique and realistic flame, surge, and lightning effects with ease. Standalone operation is achievable when the fixture is configured with our free DMX Programmer iOS app, making the Precision DMX a fully color and effects tunable floodlight that can operate without signal. The user simply sets the desired look of the Precision DMX with the DMX Programmer iOS app and the output settings will be stored in the fixture's memory. Afterward, the Precision DMX may be unplugged from DMX signal and simply powered on; the fixture will output according to the stored settings. This is an excellent feature for applications that need a fully configurable light without DMX cabling.
Features
- Full color control via DMX512 or free DMX Programmer iOS app
- 7 channel DMX control
- Built-in functions: flicker, strobe, blink, fade, color change, master dimming, color macro
- Standalone mode allows set and forget operation without DMX signal (requires free DMX Programmer iOS app)
- DMX address and configuration stored in memory
- Low voltage and minimal heat for improved safety over incandescent sources
- Internal constant current driver gives highly efficient and consistent output
- Minimal maintenance required with over 50,000 hour lamp life
- Indoor and outdoor use
Applications
- Themed entertainment (dark rides, Halloween attractions, bars, nightclubs, casinos)
- Theater and stage accent lighting
- Mobile displays
- Floral centerpieces
- Retail spaces
- Architectural accent lighting
- General purpose accent lighting
- Props and animatronics
- Special effects lighting
- Event lighting
Specifications
| Input | 12V |
| Power Rating | 3.793W (12V @ 316mA) |
| LED | Edison Edixeon RGB 3W |
| Lamp Life | 50,000 hours |
| Available Colors | RGB |
| Dimming | DMX512 |
| Lens Angle | 21 degree |
| Beam Edge | Soft |
| Dimensions | 35mm (1.4") x 52mm (2.0") length |

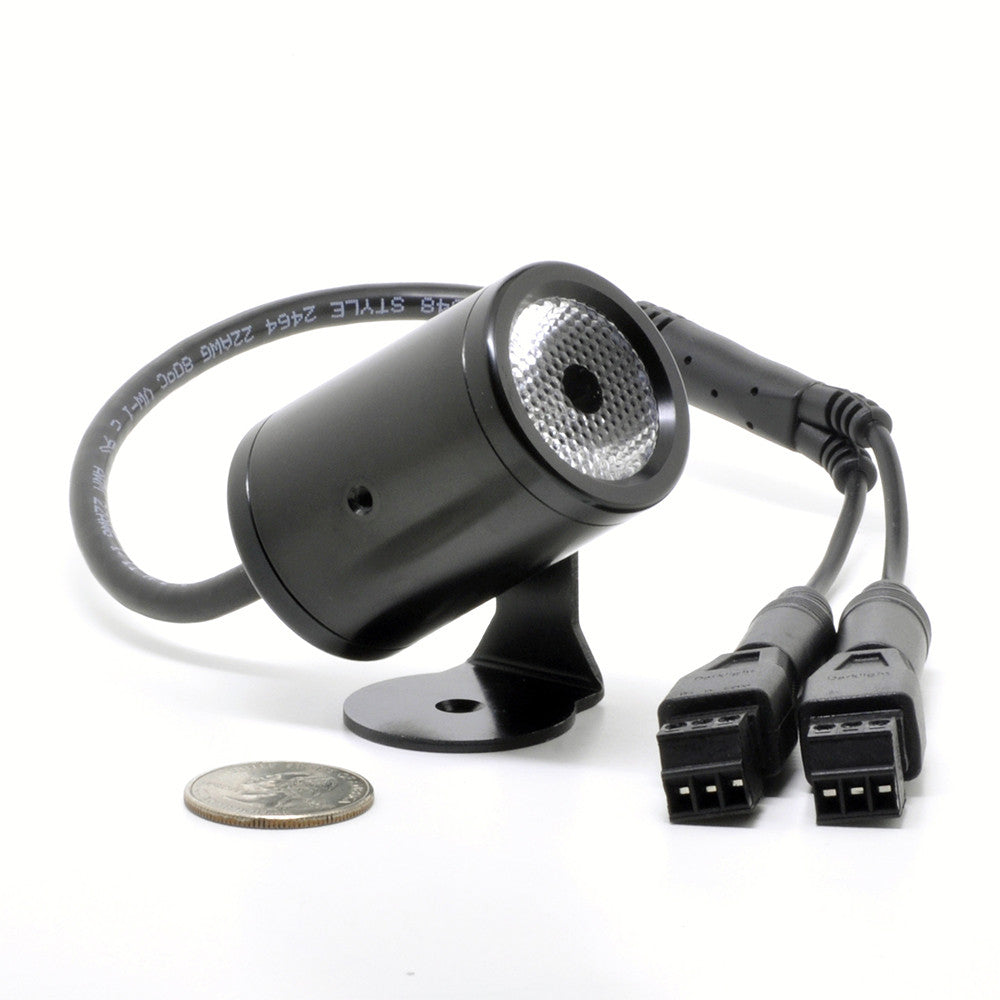

| Lead Wire Length | 360mm (14.2") |

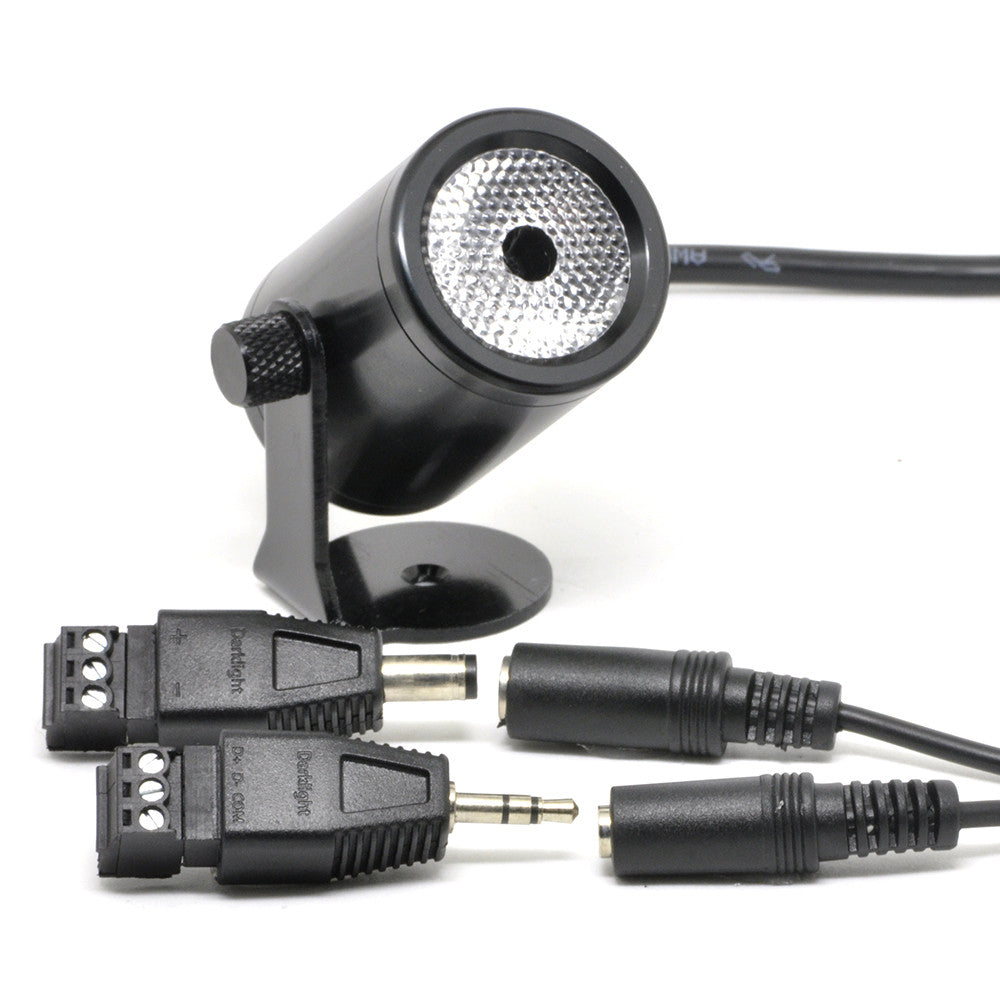

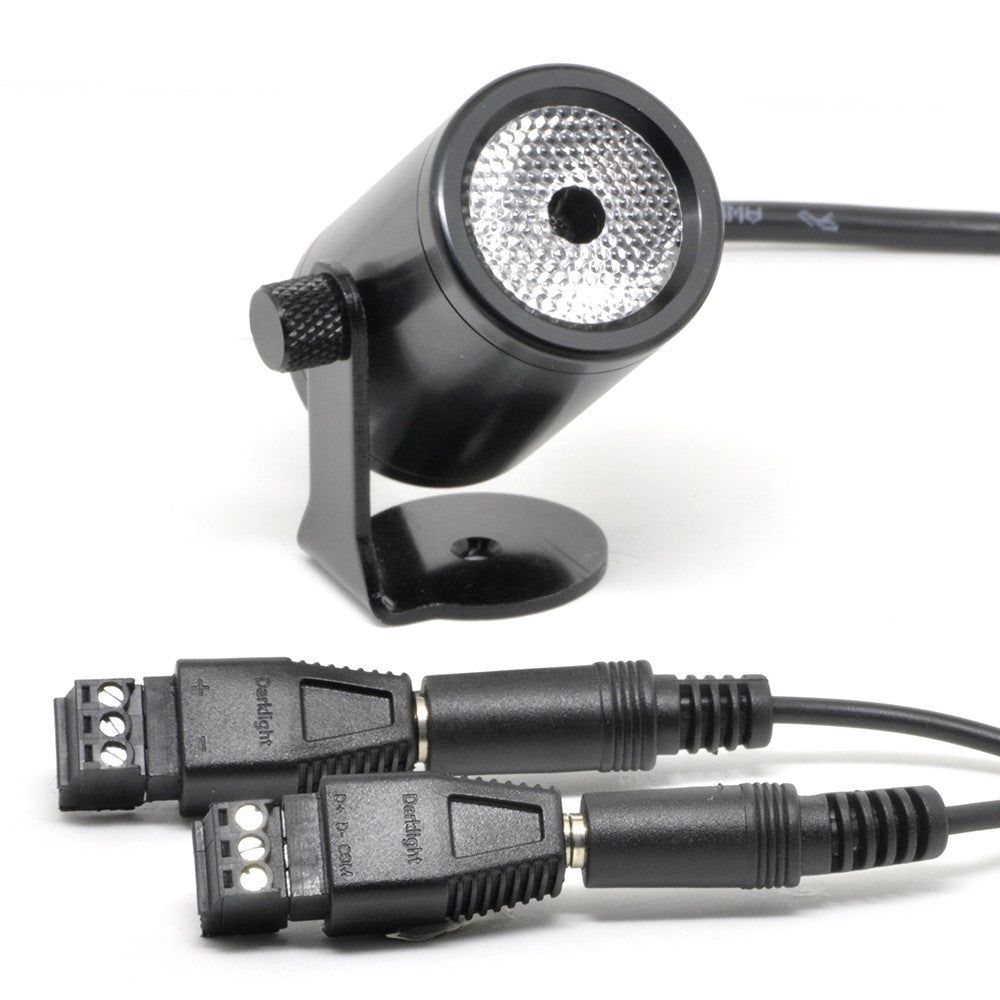

| Power connector: | 2.1mm DC jack with screw terminal adapter |
| Signal connector: | 3.5mm (1/8") TRS jack with screw terminal adapter |
| Exterior Finish | Black anodized aluminum |
| IP Rating | IP65 |
| Certification | UL |
| Launch Date | 1-Mar-11 |
Downloads
Product Details
SKU: PR41
Output:All LEDs On
Total Lumen Output: 82.0 Lumens
Total Power:3.793 W
| Distance | Center Beam |
Beam Width |
| 1.0m (3.3ft) | 353lx (32.7fc) | 0.4m (1.2ft) |
| 2.0m (6.6ft) | 86lx (8.0fc) | 0.7m (2.4ft) |
| 3.0m (9.8ft) | 36lx (3.3fc) | 1.1m (3.6ft) |
DMX Channel Descriptions
| Channel | Name | Level | Description |
| Ch 1-3 | RGB Level | 0-255 | Controls RGB levels |
| Ch 4 | Color Macro | 32-255 | Overrides Ch 1-3 with preset color |
| Ch 5 | Speed | / | If Ch 6 is 0, Ch 5 controls strobe speed of selected color If non zero, Ch 5 controls speed of sequence |
| Ch 6 | Built-In Functions | 32-71 | Fade in (at least one of Ch 1-3 must be non-zero) |
| 72-111 | Fade out (at least one of Ch 1-3 must be non-zero) | ||
| 112-151 | Pulsing (at least one of Ch 1-3 must be non-zero) | ||
| 152-191 | Smooth color fade | ||
| 192-231 | Red, Green, Blue color change | ||
| 232-250 | 6 color change | ||
| 251-255 | Flicker (color based on Ch 1-3 or Ch 4) | ||
| Ch 7 | Master Dimmer | 0-255 | Bright to dim |
