DISCONTINUED

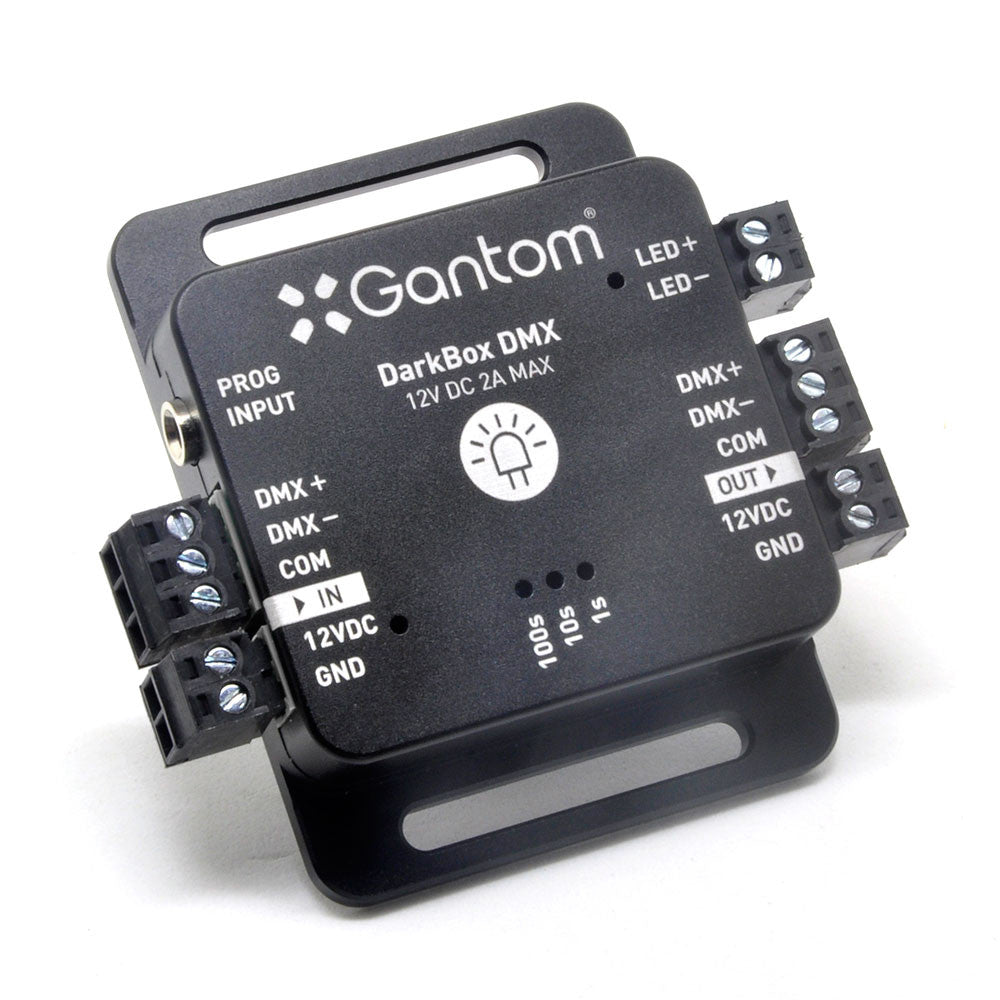

The DarkBox DMX is an ultra compact and scalable single output DMX tunable LED dimmer. The DarkBox DMX also has a variety of built-in patterns (blink, strobe, candle flicker, power surge flicker, and pulse) for special effects lighting without the need to program complex DMX signals. This device occupies 3 DMX channels, which controls brightness, speed, and mode, respectively.
The V2 features a new machined aluminum body to protect the unit in harsh environments as well as an upgraded MOSFET that allows for higher current capacity and protects against output short circuits.
Features
- Makes any dimmable 12VDC LED flicker, strobe, blink, surge, pulsate, or dim
- Fully tunable speed and brightness for any mode
- Standalone operation with DMX signal is possible if tuned and programmed with DMX Programmer app
- LED indicator displays output mode even without external LEDs attached
- Non-repeating algorithm for unique and realistic flicker patterns
Applications
- Dark attractions
- Candelabras
- Props and animatronics
- Lanterns
- Special effects strobe
- Signage
Downloads
Specifications
| SKU | DB22 |
| Input | 12VDC |
| Output | 12V PWM output, up to 2A load |
| Dimming | PWM |
| Dimensions | 71mm (2.8)x 67mm (2.6)x 15.5mm (0.8) |
| Power connector | 2.1mm DC jack with screw terminal adapter |
| Signal connector | 3.5mm TRS jack with screw terminal adapter |
| IP Rating | IP30 |
DMX Channel Descriptions
| Channel | Name | Level | Description |
| Ch 1 | Brightness Level | 0-255 | Dim to bright |
| Ch 2 | Speed | / | If Ch 3 is 0, Ch 2 controls blink speed If Ch3 is non zero, Ch 2 controls speed of function |
| Ch3 | Built-In Functions | 32-64 | Fade in |
| 65-96 | Fade out | ||
| 97-127 | Pulsing | ||
| 128-159 | Surge | ||
| 160-191 | Strobe | ||
| 191-255 | Flicker |
