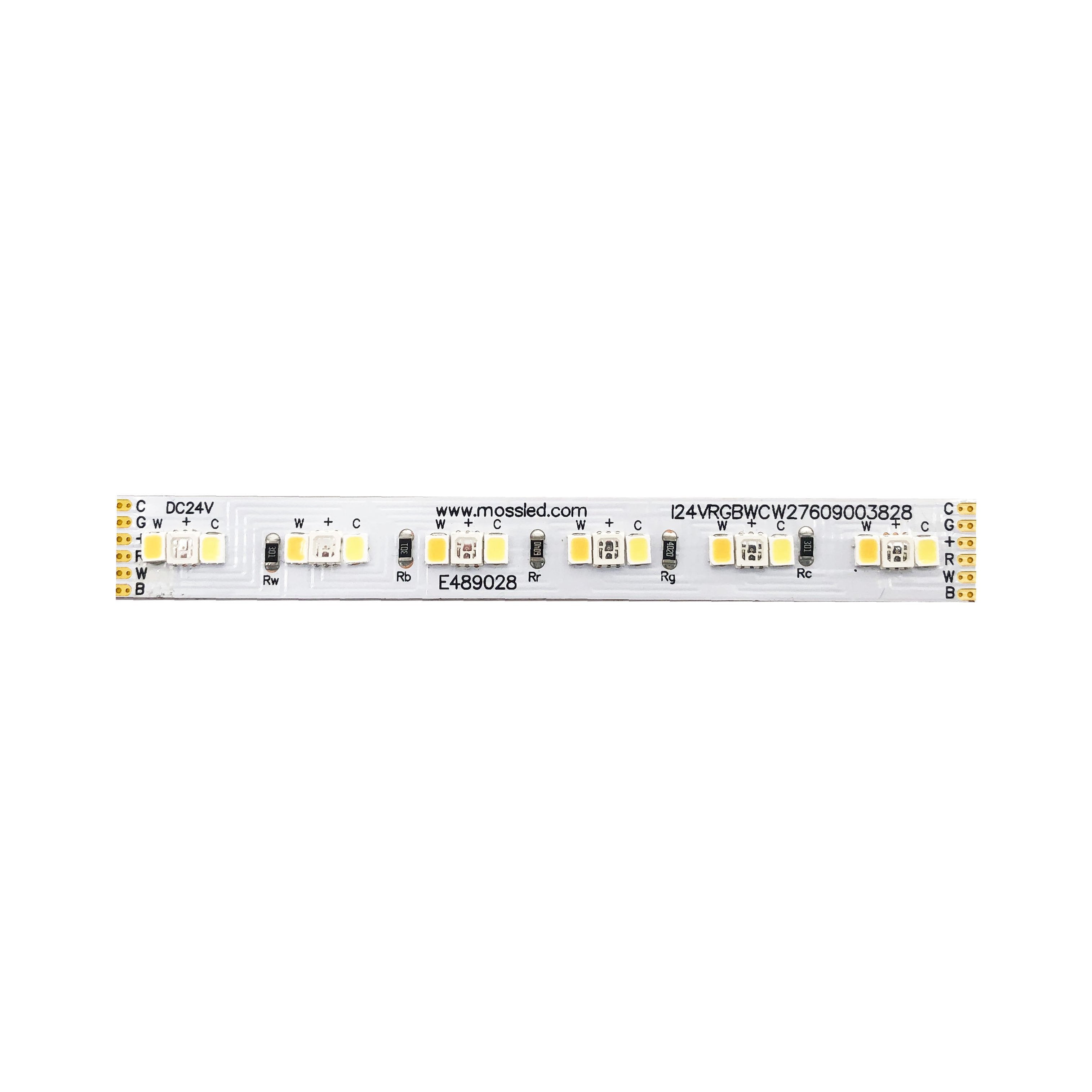

Brand new product for 2019 and celebrating our 10th anniversary we are pleased to announce this new strip which has two new features.
The first feature is our new 3838 RGB chip which packs the same power output as our 5050 RGB chip but in a 24% smaller footprint.
The second feature is our Gold coated FlexLED which creates a much stronger bond between the cirucit board and the components as well as
the circuit board and lead wires. It also takes solder much faster and at a lower temperature than our standard copper FlexLED strips. This makes working
with the product much easier and faster than our traditonal FlexLED strip.
On top of those wonderful properties, it also will not oxidize over a long period of time or if it is exposed to moisture.
This new FlexLED strip is at the cutting edge of LED technology.
Soldering Guidelines:
Soldering iron should be between 360 and 372°C (680-700°F). Please ensure not to heat solder pads for longer than 3 seconds otherwise separation of the solder pads can occur.
SPECIFICATIONS - INDOOR PRODUCT
| Product Type | : | RGB + WW + CW |
| Product Code | : | IG24VRGBWCW27609003828 |
| CRI | : | 95 |
| CCT | : | 2700 +/-100K AND 6000 +/- 100K |
| PCB Color | : | White |
| Current, Rating | : | 0.95 A / meter |
| Voltage | : | 24 VDC |
| Wattage | : | 22.8 W / meter |
| CC / CV | : | Constant Voltage |
| IP Rating | : | IP43 |
| Lumens @ Full | : | 2000 lm / meter |
| Lumen / Watt | : | 87 |
| Lifetime* | : | 40,000 hours |
| Cutting Length | : | 10 CM |
| LED Quantity | : | 180 LED / meter |
| Number of Contacts | : | 6 |
| LED Type | : | 3838 + 2835 |
| Copper Quantity | : | 3 Oz. |
| Temperature, Operating, Maximum | : | 70 C |
| Temperature, Operating, Minimum | : | -40 C |
| Agency Ratings | : | UL E489028, CE, RoHS |
| PCB Width | : | 12 MM |
| Maximum Recommended Length | : | 5 meters |
| Viewing Angle | : | 120 |
| Adhesion | : | TESA 4965 |
DOWNLOADS
-
Specification Sheet Pending
Specification Sheet Pending
*nominal lifetime - dependent on installation location
